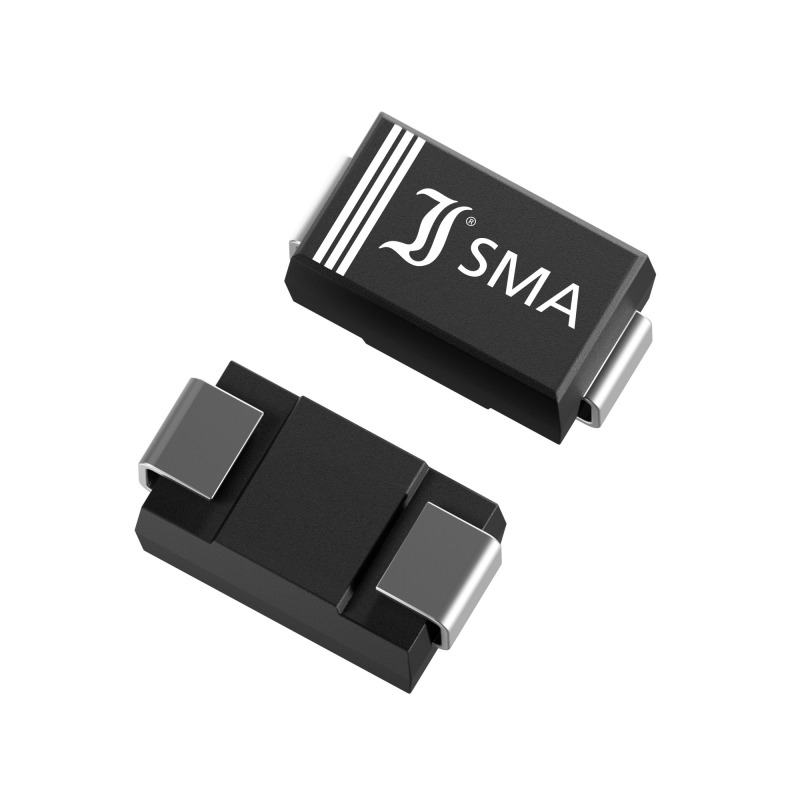

P4SMAJ28A-AQ

Active

Diotec Semiconductor

DIODE: TVS; 400W; 31.1÷34.5V; 8.8A; UNIDIRECTIONAL; ±5%; SMA; P4SMAJ

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE: TVS; 400W; 31.1÷34.5V; 8.8A; UNIDIRECTIONAL; ±5%; SMA; P4SMAJ

Technical Specifications

Parameters and characteristics for this part

Specification	P4SMAJ28A-AQ

Current - Peak Pulse (10/1000µs)	8.8 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	DO-214AC, SMA
Power - Peak Pulse	400 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AC (SMA)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	31.1 V
Voltage - Clamping (Max) @ Ipp [Max]	45.4 V
Voltage - Reverse Standoff (Typ)	28 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]	Power - Peak Pulse	Qualification	Supplier Device Package	Grade	Mounting Type	Current - Peak Pulse (10/1000µs)	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Package / Case	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]
Diotec Semiconductor P4SMAJ16CA-AQ	150 °C	-50 °C	1	400 W	AEC-Q101	DO-214AC (SMA)	Automotive	Surface Mount	15.4 A	Zener	26 V	16 V	DO-214AC SMA
Diotec Semiconductor P4SMAJ28A-AQ	150 °C	-50 °C		400 W	AEC-Q101	DO-214AC (SMA)	Automotive	Surface Mount	8.8 A	Zener	45.4 V	28 V	DO-214AC SMA	31.1 V	1
Diotec Semiconductor P4SMAJ16A-AQ	150 °C	-50 °C		400 W	AEC-Q101	DO-214AC (SMA)	Automotive	Surface Mount	15.4 A	Zener	26 V	16 V	DO-214AC SMA		1
Diotec Semiconductor P4SMAJ24A-AQ	150 °C	-50 °C		400 W	AEC-Q101	DO-214AC (SMA)	Automotive	Surface Mount	10.3 A	Zener	38.9 V	24 V	DO-214AC SMA	26.7 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

45.4V Clamp 8.8A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
