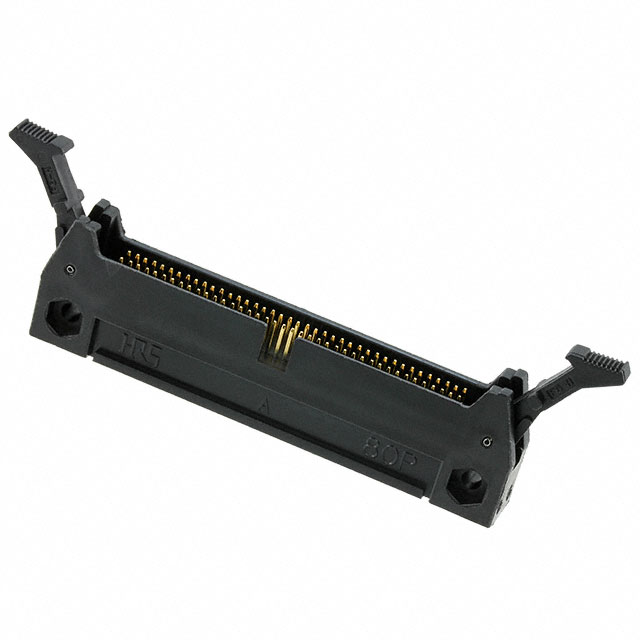

HIF6H-80PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 80POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF6H-80PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 80POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6H-80PA-1.27DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	5.21 mm
Contact Length - Mating	0.205 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	0.5 A
Fastening Type	Latch Lock/Eject Hooks
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

HIF6H Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Rows	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Color	Contact Shape	Insulation Material	Voltage Rating	Number of Positions Loaded	Shrouding	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Overall Contact Length	Overall Contact Length	Number of Positions	Insulation Height	Insulation Height	Connector Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
Hirose Electric USA, Inc. HIF6H-40PA-1.27DSA(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall	0.11 in	2.79 mm	UL94 V-0	Brass	2 çm	78.7 çin	Male Pin	14.3 mm	0.563 "	40	0.606 in	15.39 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C
Hirose Electric USA, Inc. HIF6H-100PA-1.27DSA(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall	0.11 in	2.79 mm	UL94 V-0	Brass	2 çm	78.7 çin	Male Pin	14.3 mm	0.563 "	100	0.606 in	15.39 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C
Hirose Electric USA, Inc. HIF6H-80PA-1.27DS(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole Right Angle	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall			UL94 V-0	Brass	2 çm	78.7 çin	Male Pin			80	0.335 "	8.51 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C
Hirose Electric USA, Inc. HIF6H-34PA-1.27DS(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole Right Angle	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall			UL94 V-0	Brass	2 çm	78.7 çin	Male Pin			34	0.335 "	8.51 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C
Hirose Electric USA, Inc. HIF6H-50PA-1.27DSA(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall	0.11 in	2.79 mm	UL94 V-0	Brass	2 çm	78.7 çin	Male Pin	14.3 mm	0.563 "	50	0.606 in	15.39 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C
Hirose Electric USA, Inc. HIF6H-50PA-1.27DS(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole Right Angle	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall			UL94 V-0	Brass	2 çm	78.7 çin	Male Pin			50	0.335 "	8.51 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C
Hirose Electric USA, Inc. HIF6H-34PA-1.27DSA(71)	0.05 in	1.27 mm	Gold	2	Latch Lock/Eject Hooks	Through Hole	0.203 Ám	8 Áin	Solder	Board to Cable/Wire	2.54 mm	0.1 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	300 VDC	All	Shrouded - 4 Wall	0.11 in	2.79 mm	UL94 V-0	Brass	2 çm	78.7 çin	Male Pin	14.3 mm	0.563 "	34	0.606 in	15.39 mm	Header	5.21 mm	0.205 in	0.5 A	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.44
		10	$ 8.01
		80	$ 6.38
		440	$ 5.36
		945	$ 4.98

Description

General part information

HIF6H Series

Connector Header Through Hole, Right Angle 80 position 0.050" (1.27mm)
