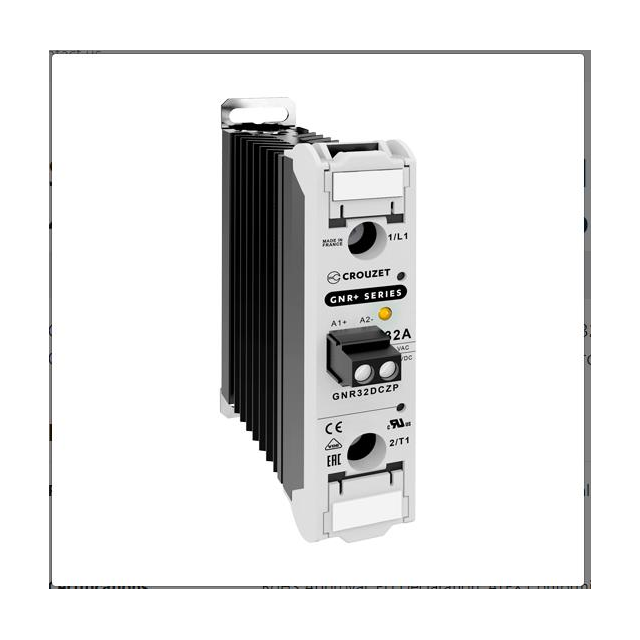

GNR32DCZP

Active

Crouzet

SOLID STATE RELAY, 32 A, 500 VAC, DIN RAIL, SCREW, ZERO CROSSING

Search across all available documentation for this part.

Active

Crouzet

SOLID STATE RELAY, 32 A, 500 VAC, DIN RAIL, SCREW, ZERO CROSSING

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Load [Min]	Voltage - Load [Max]	Load Current	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type	Package / Case
Crouzet GNR32DCZP	24 V	500 V	32 A	Module	32 V	4 V	Screw Terminal	-40 °C	80 C	AC Zero Cross	Chassis Mount DIN Rail	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.33
Newark	Each	1	$ 105.41

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources
