HN4WM306010S16

Active

Hammond Manufacturing

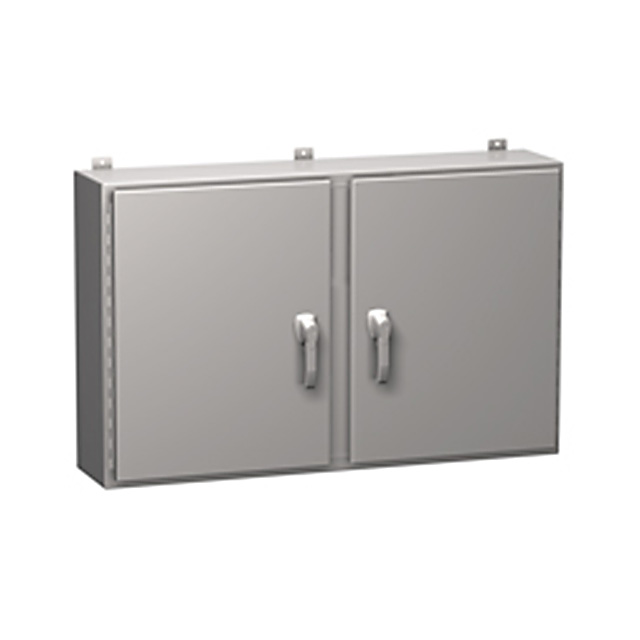

ENCLOSURE 2 DOOR WALLMOUNT

Deep-Dive with AI

Search across all available documentation for this part.

HN4WM306010S16

Active

Hammond Manufacturing

ENCLOSURE 2 DOOR WALLMOUNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HN4WM306010S16

Color	Natural
Dimensions - Overall [x]	254 mm
Dimensions - Overall [x]	10 in
Dimensions - Overall [y]	60 "
Dimensions - Overall [y]	1524 mm
Dimensions - Overall [z]	762 mm
Dimensions - Overall [z]	30 in
Dimensions - Panel [x]	254 mm
Dimensions - Panel [x]	10 in
Dimensions - Panel [y]	1454.15 mm
Dimensions - Panel [y]	57.25 "
Dimensions - Panel [z]	27 in
Dimensions - Panel [z]	685.8 mm
Door	Stainless Steel
Features	Wall Mount, Single Access, Dual Door
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Style	Bottom, Enclosed, Sides, Front, Top
Type	Equipment Cabinet
Ventilation	Non-Vented

HN4WM306010 Series

Part	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [x]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [z]	Style	Ventilation	Type	Shipping Info	Features	Color	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [x]	Door
Hammond Manufacturing HN4WM306010S16	1454.15 mm	27 in	254 mm	57.25 "	10 in	685.8 mm	Bottom Enclosed Front Sides Top	Non-Vented	Equipment Cabinet	Drop shipped from the Manufacturer's Warehouse	Dual Door Single Access Wall Mount	Natural	762 mm	60 "	1524 mm	30 in	254 mm	10 in	Stainless Steel
Hammond Manufacturing HN4WM306010SS	1454.15 mm	27 in	254 mm	57.25 "	10 in	685.8 mm	Bottom Enclosed Front Sides Top	Non-Vented	Equipment Cabinet	Drop shipped from the Manufacturer's Warehouse	Dual Door Single Access Wall Mount	Natural	762 mm	60 "	1524 mm	30 in	254 mm	10 in	Stainless Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5286.88

Description

General part information

HN4WM306010 Series

Metal, Stainless Steel Equipment Cabinet Enclosed, Bottom, Front, Sides, Top 10.000" L x 60.000" W x 30.000" H (254.00mm x 1524.00mm x 762.00mm) Natural

Documents

Technical documentation and resources

No documents available
