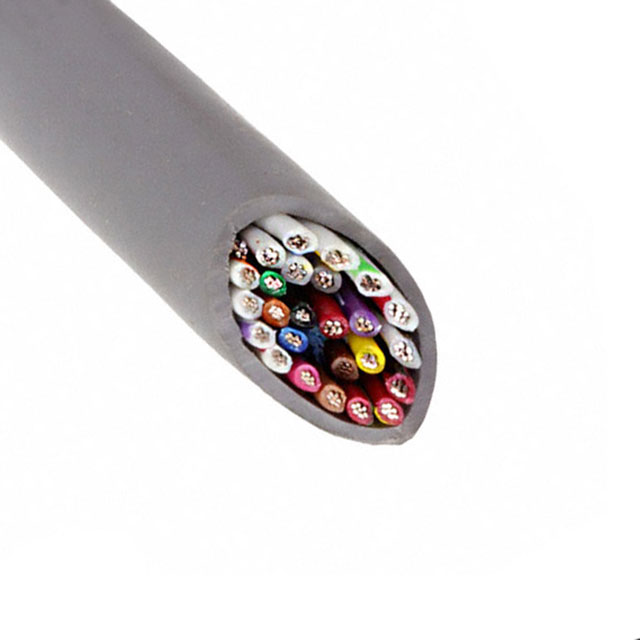

1898/25C SL001
ActiveALPHA WIRE
CABLE 25COND 18AWG SLATE
Deep-Dive with AI
Search across all available documentation for this part.
1898/25C SL001
ActiveALPHA WIRE
CABLE 25COND 18AWG SLATE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1898/25C SL001 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.544 " |
| Jacket (Insulation) Diameter [diameter] | 13.82 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Slate |
| Length | Enter Number of Feet in Order Quantity |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 25 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 16.80 | |
| 3 | $ 15.50 | |||
| 5 | $ 14.93 | |||
| 7 | $ 14.60 | |||
| 10 | $ 14.28 | |||
| 25 | $ 13.38 | |||
| 50 | $ 12.73 | |||
| 100 | $ 12.07 | |||
| Spool | 1000 | $ 7.88 | ||
Description
General part information
1898/25C Series
25 Conductor Multi-Conductor Cable Slate 18 AWG 1000.0' (304.8m)
