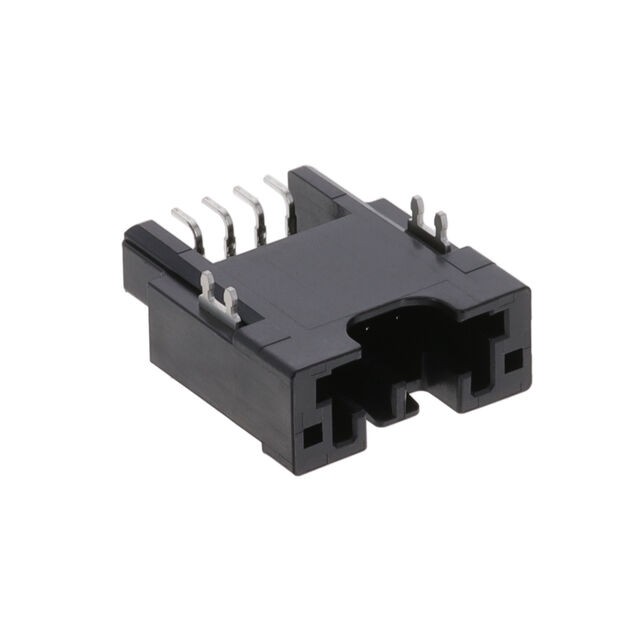

IMSA-18021S-03A-GFN4
ActiveIRISO USA Inc.
CONN SOCKET VERT B-TO-B FLOATING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMSA-18021S-03A-GFN4
ActiveIRISO USA Inc.
CONN SOCKET VERT B-TO-B FLOATING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-18021S-03A-GFN4 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 6.25 mm |
| Height Above Board | 0.246 in |
| Mounting Type | Surface Mount |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.05 | |
| 10 | $ 1.78 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.44 | |||
| Tape & Reel (TR) | 600 | $ 0.94 | ||
Description
General part information
IMSA-1802 Series
3 Position Connector Surface Mount Gold
