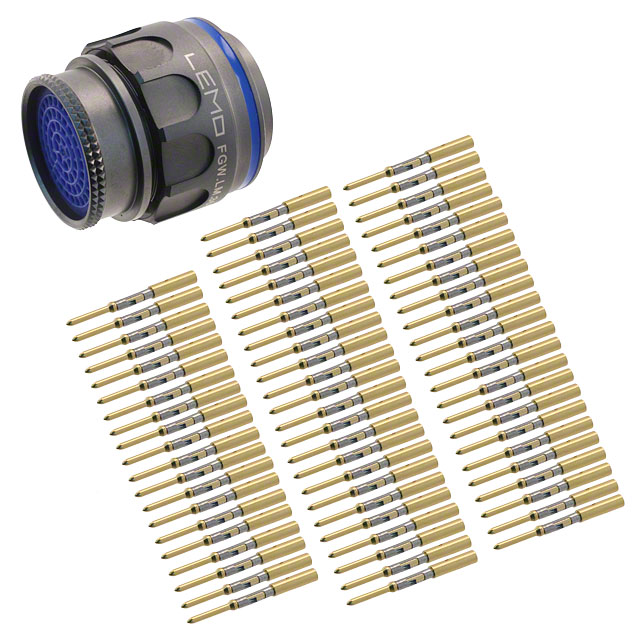

FGW.LM.368.XLCT

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	FGW.LM.368.XLCT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	22.7 mm
Cable Opening [diameter]	0.894 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	2.5 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	68
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	W
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	368
Shielding	Shielded
Termination	Crimp

Part	Termination	Shell Material	Shell Finish	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Insert Material	Contact Finish - Mating	Primary Material	Mounting Type	Applications	Features	Number of Positions	Shell Size - Insert	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Current Rating (Amps)	Shielding	Contact Material
LEMO FGW.LM.368.XLCT	Crimp	Aluminum Alloy	Nickel	W	1 µm	39.4 µin	Gray	Polyetheretherketone (PEEK)	Gold	Metal	Free Hanging (In-Line)	Aerospace Automotive Aviation Military	Coupling Nut	68	368	IP68 - Dust Tight Waterproof	-55 °C	200 °C	22.7 mm	0.894 in	Male Pins Plug	2.5 A	Shielded	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position Circular Connector Plug, Male Pins Crimp
