5903-1005-030
ObsoleteTE Connectivity Measurement Specialties

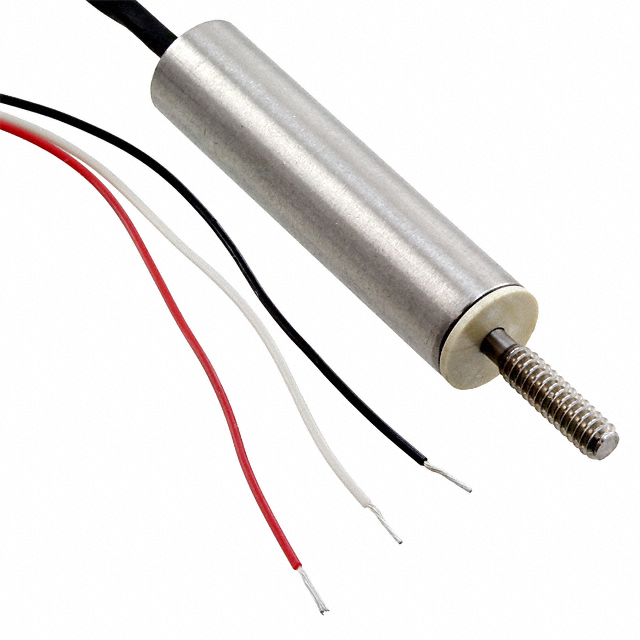

SENSOR LINEAR 12.7MM WIRE LEADS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5903-1005-030
ObsoleteTE Connectivity Measurement Specialties
SENSOR LINEAR 12.7MM WIRE LEADS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5903-1005-030 |
|---|---|
| Actuator Type | Round Shaft |
| For Measuring | Linear Position |
| Linear Range [Max] | 0.5 in |
| Linear Range [Max] | 12.7 mm |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 1 % |
| Mounting Type | Custom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Output | Resistive |
| Package / Case | Cylinder, Wire Leads |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 10% |
| Technology | Resistive |
| Termination Style | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5903 Series
Resistive Sensor Linear Position Round Shaft Wire Leads
