Q-2W00J0003002M

Active

Amphenol Custom Cable

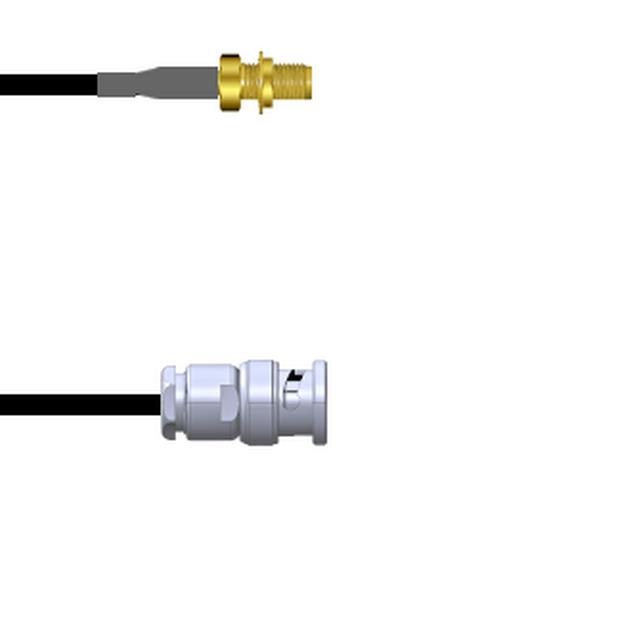

CBL ASSY BNC-SMA PLUG-JACK 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2W00J0003002M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Part	2nd Connector Mounting Feature	Style	Connector Impedance	1st Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	Overall Impedance	2nd Connector	Features	Length	Length	Length	Cable Type	Color	Cable Impedance	1st Connector	2nd Contact Gender	2nd Connector Mounting Type
Amphenol Custom Cable Q-2W00J0003002M	Bulkhead - Front Side Nut	BNC to SMA	50 Ohms	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	SMA Jack	Shielded	6.6 ft	78.7 in	2 m	RG-174	Black	50 Ohms	BNC Plug	Female	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-174 78.7" (2.0m) 6.6'

Technical documentation and resources

No documents available
