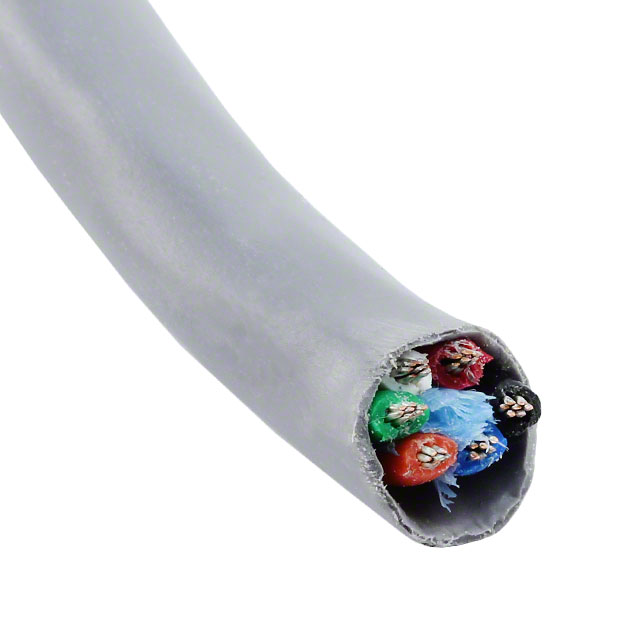

1896/6L SL002

Active

ALPHA WIRE

AE C&C LSZH /500 FT /EACH

Search across all available documentation for this part.

Active

ALPHA WIRE

AE C&C LSZH /500 FT /EACH

Technical Specifications

Parameters and characteristics for this part

Specification	1896/6L SL002

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.276 in
Jacket (Insulation) Diameter [diameter]	7.01 mm
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Cable Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length	Length	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Length [x]	Length [x]
ALPHA WIRE 1896/6L SL001	28	7	Low Smoke Zero Halogen (LSZH)	300 V	Multi-Conductor	Slate	0.025 in	0.635 mm	20 AWG	1000 ft	304.8 m	6	0.276 in	7.01 mm	Copper Tinned	Communication Control
ALPHA WIRE 1896/6L SL002	28	7	Low Smoke Zero Halogen (LSZH)	300 V	Multi-Conductor	Slate	0.025 in	0.635 mm	20 AWG			6	0.276 in	7.01 mm	Copper Tinned	Communication Control	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Slate 20 AWG 500.0' (152.4m)
