Technical Specifications
Parameters and characteristics for this part
| Specification | P70-2010045R |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 10000 |
| Maximum Working Height [Max] | 4.2 mm |
| Maximum Working Height [Max] | 0.165 in |
| Minimum Working Height | 3.85 mm |
| Minimum Working Height [Min] | 0.152 in |
| Mounting Type | Through Hole |
| Operating Force - Mid Compression | 134.6 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pad Layout Dimension [diameter] | 2.4 mm |
| Pad Layout Dimension [diameter] | 0.094 in |
| Plunger Size [diameter] | 0.035 in |
| Plunger Size [diameter] | 0.9 mm |
| Recommended Working Height [z] | 0.157 in |
| Recommended Working Height [z] | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P70-20100 Series

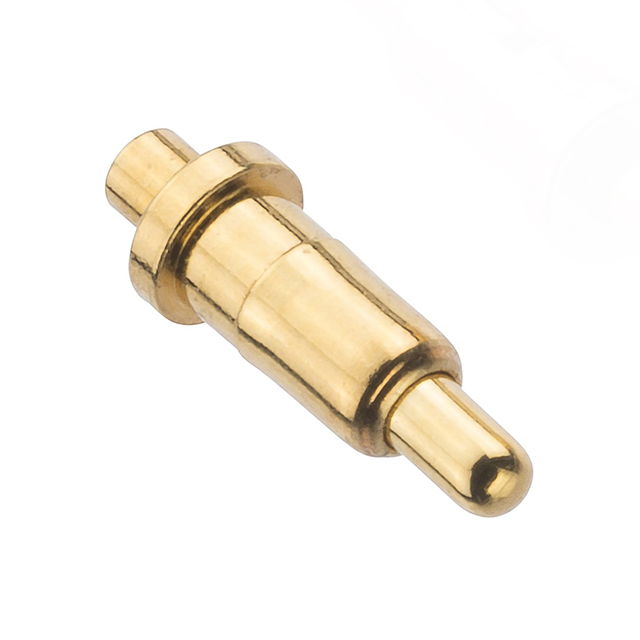

The P70-2010045R from Harwin is a surface mount single spring loaded contact with location peg or PC tail mounting. This PC tail pogo pin can be soldered as surface mount using the PC tail for location or lateral strength. This spring loaded contact mates with any contact surface or S70 series SMT contact pads. It has gold finish for improved wear resistance.
