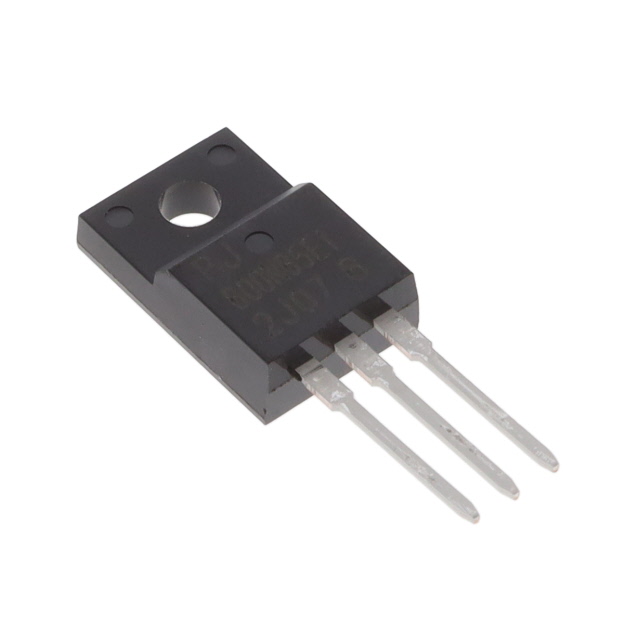

PJMF900N60EC_T0_00001

Active

Panjit International Inc.

600V SUPER JUNCTION MOSFET

Search across all available documentation for this part.

Active

Panjit International Inc.

600V SUPER JUNCTION MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	PJMF900N60EC_T0_00001

Current - Continuous Drain (Id) @ 25°C	5 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	8.8 nC
Input Capacitance (Ciss) (Max) @ Vds	310 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3 Full Pack, Isolated Tab
Power Dissipation (Max) [Max]	22.5 W
Rds On (Max) @ Id, Vgs [Max]	900 mOhm
Supplier Device Package	ITO-220AB-F
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max) @ Id	4 V

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Rds On (Max) @ Id, Vgs [Max]	Drain to Source Voltage (Vdss)	Mounting Type	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Vgs(th) (Max) @ Id	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Technology	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs
Panjit International Inc. PJMF900N60EC_T0_00001	8.8 nC	10 V	N-Channel	-55 °C	150 °C	TO-220-3 Full Pack Isolated Tab	900 mOhm	600 V	Through Hole	22.5 W	310 pF	ITO-220AB-F	4 V	30 V	5 A	MOSFET (Metal Oxide)
Panjit International Inc. PJMF900N65E1_T0_00001	13 nC	10 V	N-Channel	-55 °C	150 °C	TO-220-3 Full Pack Isolated Tab		650 V	Through Hole		382 pF	ITO-220AB-F	4 V	30 V	4.7 A	MOSFET (Metal Oxide)	900 mOhm	25.5 W
Panjit International Inc. PJMF900N60E1_T0_00001		10 V	N-Channel	-55 °C	150 °C	TO-220-3 Full Pack Isolated Tab		600 V	Through Hole	23.6 W	344 pF	ITO-220AB-F	4 V	30 V	4.4 A	MOSFET (Metal Oxide)	900 mOhm		11.5 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 600 V 5A (Tc) 22.5W (Tc) Through Hole ITO-220AB-F
