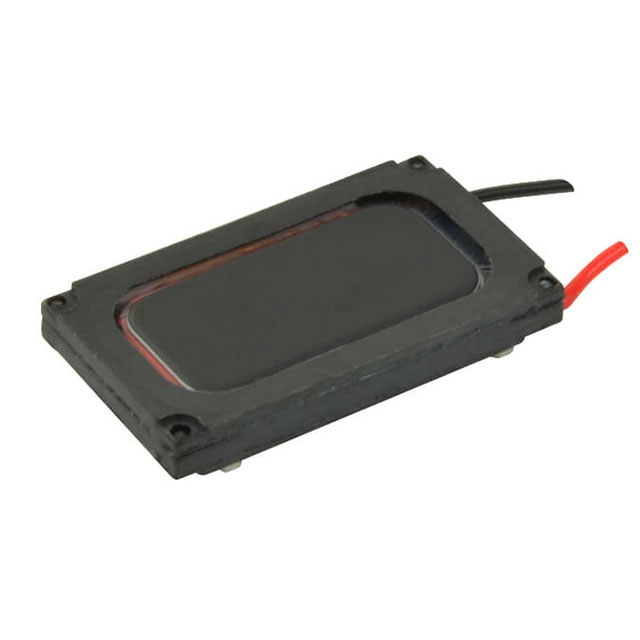

CMS-160925-078L100

Active

CUI Devices

SPEAKER 8OHM 700MW TOP PORT 90DB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMS-160925-078L100

Active

CUI Devices

SPEAKER 8OHM 700MW TOP PORT 90DB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-160925-078L100

Efficiency - dBA	90 dBA
Efficiency - Testing	700 mW, 100 mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	550 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	100 Hz
Height - Seated (Max) [Max] [z]	2.5 mm
Height - Seated (Max) [Max] [z]	0.098 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	700 mW
Shape	Rectangular
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Technology	Magnetic
Termination	Wire Leads
Type	General Purpose

CMS-160925 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Port Location	Material - Cone	Efficiency - dBA	Ingress Protection	Frequency - Self Resonant	Efficiency - Type	Efficiency - Testing	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shape	Frequency Range [Max]	Frequency Range [Min]	Termination	Impedance	Technology	Material - Magnet	Power - Max [Max]
CUI Devices CMS-160925-078L100B-67	-20 C	70 °C	Top	Polyester Polyethylene Terephthalate (PET)	90 dBA	IP67 - Dust Tight Waterproof	550 Hz	Sound Pressure Level (SPL)	100 mm 700 mW	General Purpose	9 mm	0.354 in	0.63 "	16 mm	700 mW	2.5 mm	0.098 in	Rectangular	20 kHz	100 Hz	Wire Leads with Connector	8 Ohms	Magnetic	Nd-Fe-B	1 W
CUI Devices CMS-160925-078L100A-67	-20 C	70 °C	Top	Polyester Polyethylene Terephthalate (PET)	90 dBA	IP67 - Dust Tight Waterproof	550 Hz	Sound Pressure Level (SPL)	100 mm 700 mW	General Purpose	9 mm	0.354 in	0.63 "	16 mm	700 mW	2.5 mm	0.098 in	Rectangular	20 kHz	100 Hz	Wire Leads with Connector	8 Ohms	Magnetic	Nd-Fe-B	1 W
CUI Devices CMS-160925-078L100A	-20 C	70 °C	Top	Polyester Polyethylene Terephthalate (PET)	90 dBA		550 Hz	Sound Pressure Level (SPL)	100 mm 700 mW	General Purpose	9 mm	0.354 in	0.63 "	16 mm	700 mW	2.5 mm	0.098 in	Rectangular	20 kHz	100 Hz	Wire Leads with Connector	8 Ohms	Magnetic	Nd-Fe-B	1 W
CUI Devices CMS-160925-078S			Top	Polyester Polyethylene Terephthalate (PET)	90 dBA		550 Hz	Sound Pressure Level (SPL)	100 mm 700 mW	General Purpose	9 mm	0.354 in	0.63 "	16 mm	700 mW	2.5 mm	0.098 in	Rectangular	20 kHz	100 Hz	Spring Type	8 Ohms	Magnetic	Nd-Fe-B	1 W
CUI Devices CMS-160925-078L100			Top	Polyester Polyethylene Terephthalate (PET)	90 dBA		550 Hz	Sound Pressure Level (SPL)	100 mm 700 mW	General Purpose	9 mm	0.354 in	0.63 "	16 mm	700 mW	2.5 mm	0.098 in	Rectangular	20 kHz	100 Hz	Wire Leads	8 Ohms	Magnetic	Nd-Fe-B	1 W
CUI Devices CMS-160925-078S-67			Top	Polyester Polyethylene Terephthalate (PET)	90 dBA	IP67 - Dust Tight Waterproof	550 Hz	Sound Pressure Level (SPL)	100 mm 700 mW	General Purpose	9 mm	0.354 in	0.63 "	16 mm	700 mW	2.5 mm	0.098 in	Rectangular	20 kHz	100 Hz	Spring Type	8 Ohms	Magnetic	Nd-Fe-B	1 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.55
		10	$ 1.29
		25	$ 1.19
		40	$ 1.19

Description

General part information

CMS-160925 Series

8 Ohms General Purpose Speaker 700 mW 100 Hz ~ 20 kHz Top Rectangular
