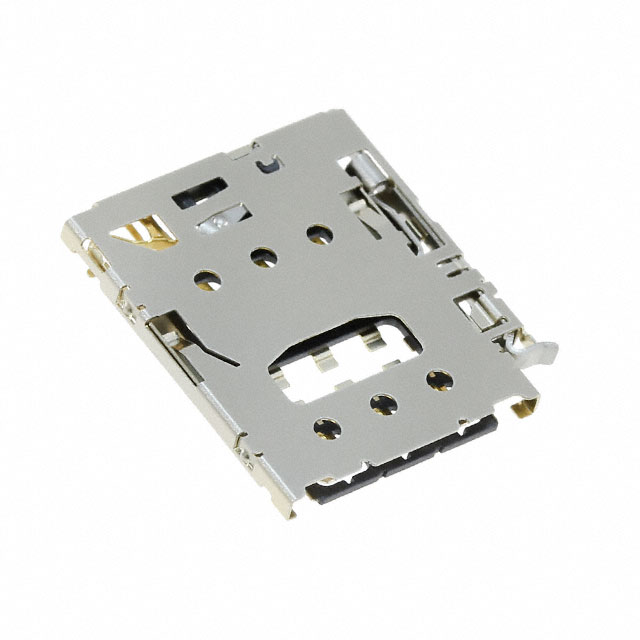

SF70S006VBAR2000
ActiveJAE Electronics
CONN NANOSIM CARD PUSH EJECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF70S006VBAR2000
ActiveJAE Electronics
CONN NANOSIM CARD PUSH EJECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF70S006VBAR2000 |
|---|---|
| Card Type | NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ejector Side | Right |
| Features | Switch |
| Height Above Board | 0.049 in |
| Height Above Board | 1.25 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.32 | |
| 10 | $ 2.02 | |||
| 25 | $ 1.93 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.29 | |||
| Digi-Reel® | 1 | $ 2.32 | ||
| 10 | $ 2.02 | |||
| 25 | $ 1.93 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.29 | |||
| Tape & Reel (TR) | 2000 | $ 1.24 | ||
| 4000 | $ 1.20 | |||
| 6000 | $ 1.14 | |||
Description
General part information
SF70S006 Series
7 (6 + 1) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
