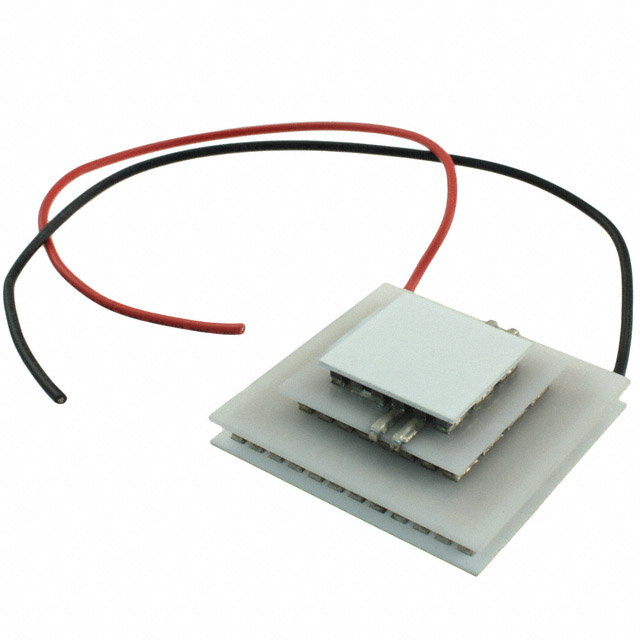

9360002-307

Active

Laird Thermal Systems, Inc.

MS3,119,20,15,22,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS3,119,20,15,22,W8

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Operating Temperature	Number of Stages	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features	Voltage - Max [Max]	Current - Max [Max]
Laird Thermal Systems, Inc. 9360002-307	25 °C 100 °C	80 °C	3	15.3 W	44 mm	44 mm	13.11 mm	Lead Wires Non-Sealed	8.3 V	8 A
Laird Thermal Systems, Inc. 9360002-304	25 °C 100 °C	80 °C	3	15.3 W	44 mm	44 mm	13.11 mm	Lead Wires Non-Sealed	8.3 V	8 A
Laird Thermal Systems, Inc. 9360002-301	25 °C 100 °C	80 °C	3	15.3 W	44 mm	44 mm	12.9 mm	Lead Wires Non-Sealed	8.3 V	8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 258.47

General part information

Peltier Module 15.3W @ 25°C 8 A 80°C
