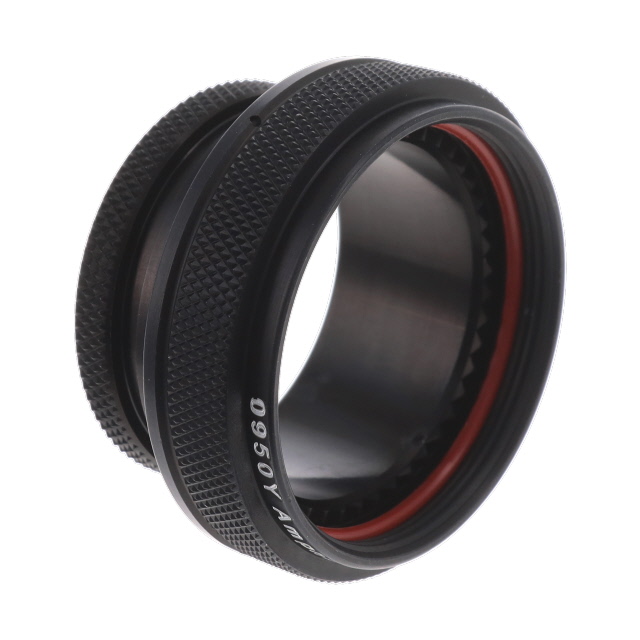

M85049/69-25A

Active

Amphenol Interconnect India

CONN BACKSHELL ADPT SZ25 J BLACK

Deep-Dive with AI

Search across all available documentation for this part.

M85049/69-25A

Active

Amphenol Interconnect India

CONN BACKSHELL ADPT SZ25 J BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/69-25A

Cable Exit	180 °
Color	Black
Diameter - Outside [diameter]	1.85 "
Diameter - Outside [diameter]	46.99 mm
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Anodized
Shell Size - Insert	J
Shell Size - Insert	25
Shielding	Unshielded
Type	Backshell, Heat Shrink Adapter

M85049/69 Series

Part	Color	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Shell Size - Insert	Cable Exit	Features	Shielding	Type	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Material	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Thread Size
Amphenol Interconnect India M85049/69-15ZD	Black	Zinc Cobalt	29.21 mm	1.15 in	15	D	180 °	Drain Hole	Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.63 in	16 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-23Z	Black	Zinc Cobalt	41.91 mm	1.65 "	23	H	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	1.06 in	26.92 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-17ZD	Black	Zinc Cobalt	31.75 mm	1.25 in		17 E	180 °	Drain Hole	Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.75 in	19.05 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-15A	Black	Anodized	29.21 mm	1.15 in	15	D	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.625 in	15.88 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-9ZD	Black	Zinc Cobalt	19.05 mm	0.75 in			180 °	Drain Hole	Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.25 in	6.35 mm	Aluminum Alloy	9	A
Amphenol Interconnect India M85049/69-13A	Black	Anodized			13		180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.5 in	12.7 mm	Aluminum Alloy			M18x1
Amphenol Interconnect India M85049/69-19Z	Black	Zinc Cobalt	35.56 mm	1.4 in	19	F	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.81 in	20.57 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-25A	Black	Anodized	46.99 mm	1.85 "	25	J	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV			Aluminum Alloy
Amphenol Interconnect India M85049/69-11A	Black	Anodized	21.59 mm	0.85 in	11	B	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.375 in	9.52 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-15W	Olive	Cadmium Nickel			15		180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.625 in	15.88 mm	Aluminum Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 314.71
		1	$ 11.33
		10	$ 9.82
		25	$ 9.50

Description

General part information

M85049/69 Series

Black Connector Backshell, Heat Shrink Adapter 25, J

Documents

Technical documentation and resources

No documents available
