SI8281-KIT

Obsolete

Skyworks Solutions Inc.

EVALUATION KIT FOR SI8281 DEVICE

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

EVALUATION KIT FOR SI8281 DEVICE

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Supplied Contents	Function	Type	Contents	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Qualification	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Grade	Technology	Number of Channels	Pulse Width Distortion (Max)	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [y]	Approval Agency
Skyworks Solutions Inc. SI8281-KIT	Si8281	Board(s)	Gate Driver	Power Management	Board(s)
Skyworks Solutions Inc. SI8281CC-IS						50 ns	50 ns	AEC-Q100	2.8 V	5.5 V	35 kV/µs	4 A	Automotive	Capacitive Coupling	1	5 ns	3 A	2.5 A	125 °C	-40 °C	Surface Mount	20-SOIC	20-SOIC	0.295 in	7.5 mm	CQC CSA UL VDE
Skyworks Solutions Inc. SI8281CC-ISR						50 ns	50 ns	AEC-Q100	2.8 V	5.5 V	35 kV/µs	4 A	Automotive	Capacitive Coupling	1	5 ns	3 A	2.5 A	125 °C	-40 °C	Surface Mount	20-SOIC	20-SOIC	0.295 in	7.5 mm	CQC CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

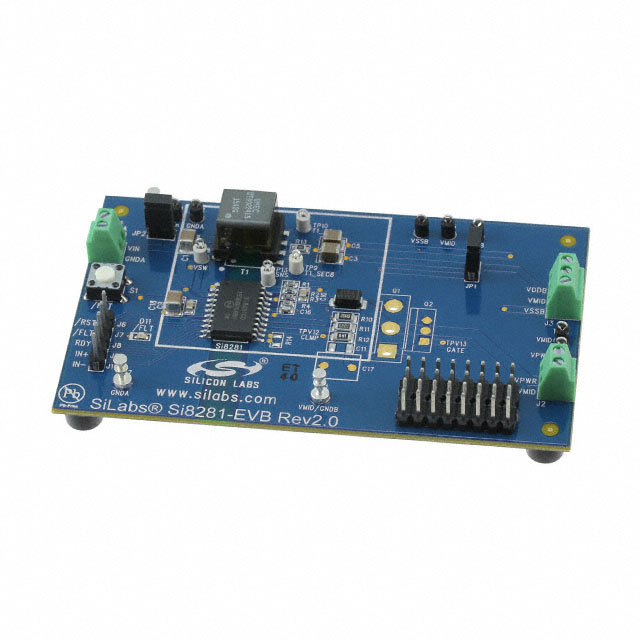

Si8281 - Gate Driver Power Management Evaluation Board

Technical documentation and resources
