CMV4000-3E5M1CA

Active

ams-OSRAM USA INC.

IMAGE SENSORS & COLOR SENSORS AR

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

IMAGE SENSORS & COLOR SENSORS AR

Technical Specifications

Parameters and characteristics for this part

Part	Type	Active Pixel Array [custom]	Active Pixel Array [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Pixel Size [x]	Pixel Size [y]	Frames per Second	Supplier Device Package	Voltage - Supply	Active Pixel Array [x]	Active Pixel Array [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case
ams-OSRAM USA INC. CMV4000-3E5M0PN	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180
ams-OSRAM USA INC. CMV4000-3E12M1LP	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180	95-LGA
ams-OSRAM USA INC. CMV4000-3E5C1PP	CMOS			70 °C	-30 ░C	5.5 µm	5.5 µm	340 Frames per Second	95-MicroPGA	1.8 V 3.3 V	2048	1088
ams-OSRAM USA INC. CMV4000-3E5M1PN	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180	95-MicroPGA
ams-OSRAM USA INC. CMV4000-2E5M1LP	CMOS			70 °C	-30 ░C	5.5 µm	5.5 µm	340 Frames per Second	95-LGA (18.65x18.65)		2048	1088	3.3 V	1.8 V	95-CBLGA
ams-OSRAM USA INC. CMV4000-3E5C1LP	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180	95-LGA
ams-OSRAM USA INC. CMV4000-3E5C1CA	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180
ams-OSRAM USA INC. CMV4000-3E5M1PP	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180
ams-OSRAM USA INC. CMV4000-3E5M1CA	CMOS			70 °C	-30 ░C	5.5 µm	5.5 µm	340 Frames per Second	92-LCC	1.8 V 3.3 V	2048	1088
ams-OSRAM USA INC. CMV4000-3E5M1LP	CMOS	2048	2048	70 °C	-30 ░C	5.5 µm	5.5 µm	180	95-LGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

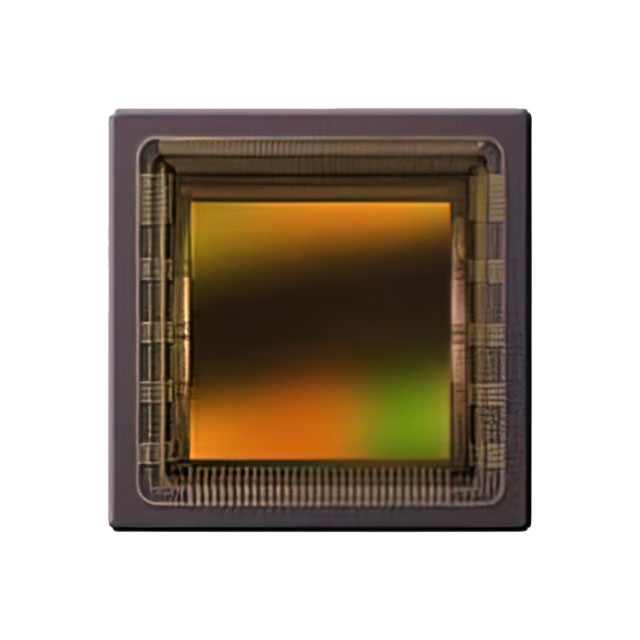

CMOS Image Sensor 2048H x 1088V 5.5µm x 5.5µm 92-LCC

Technical documentation and resources
