2702934

Active

Phoenix Contact

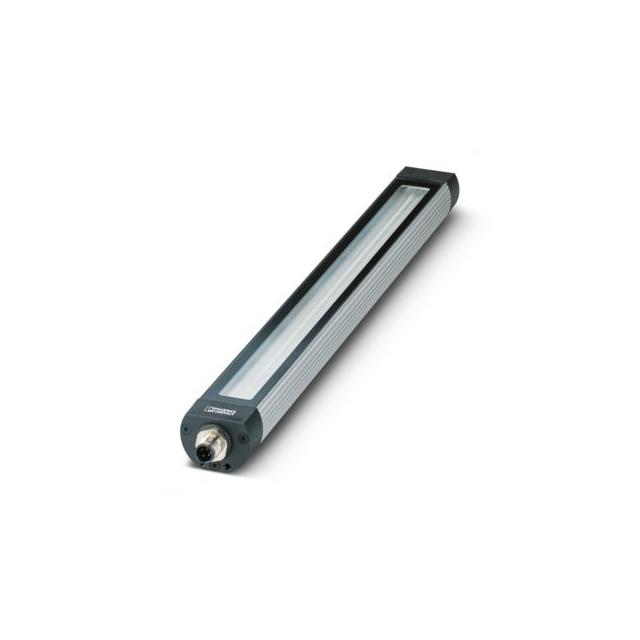

LED MOD COOL WHT RECT 5000K

Search across all available documentation for this part.

Active

Phoenix Contact

LED MOD COOL WHT RECT 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	2702934

CCT (K)	5000 K
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	80
Features	IP67
Height [z]	30 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	102 lm/W
Luminous Flux @ Current/Temperature	1080 lm
Size / Dimension [x]	365 mm
Size / Dimension [y]	40 mm
Type	LED Module
Viewing Angle	95 °, 85 °
Voltage - Forward (Vf) (Typ)	24 V

Part	Features	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Type	Color	CCT (K)	Luminous Flux @ Current/Temperature	Viewing Angle	Current - Test	Configuration	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Lens Type	Function - Audible	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage - Supply	Number of Stacks	Termination Style
Phoenix Contact 2702938	IP67	40 mm	190 mm	30 mm	LED Module	Cool White	5000 K	490 lm	40 ° 80 °	210 mA	Rectangle	97 lm/W	80	24 V	Flat
Phoenix Contact 2702942	IP67	40 mm	715 mm	30 mm	LED Module	Cool White	5000 K	2330 lm	40 ° 80 °	900 mA	Rectangle	108 lm/W	80	24 V	Flat
Phoenix Contact 2702998					Acoustic Element											Alternating Continuous	50 °C	-30 ░C	IP65 - Dust Tight Water Resistant	24 VAC	1
Phoenix Contact 2702934	IP67	40 mm	365 mm	30 mm	LED Module	Cool White	5000 K	1080 lm	85 ° 95 °		Rectangle	102 lm/W	80	24 V	Flat
Phoenix Contact 2702941	IP67	40 mm	540 mm	30 mm	LED Module	Cool White	5000 K	1720 lm	40 ° 80 °		Rectangle	107 lm/W	80	24 V	Flat
Phoenix Contact 2702939	IP67	40 mm	365 mm	30 mm	LED Module	Cool White	5000 K	1120 lm	40 ° 80 °		Rectangle	106 lm/W	80	24 V	Flat
Phoenix Contact 2702935	IP67	40 mm	540 mm	30 mm	LED Module	Cool White	5000 K	1680 lm	85 ° 95 °		Rectangle	104 lm/W	80	24 V	Flat
Phoenix Contact 2702933	IP67	40 mm	190 mm	30 mm	LED Module	Cool White	5000 K	480 lm	85 ° 95 °	210 mA	Rectangle	95 lm/W	80	24 V	Flat
Phoenix Contact 2702997	Adjustable Volume				Acoustic Element											Multiple	50 °C	-30 ░C	IP65 - Dust Tight Water Resistant	24 VAC	1	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 388.46

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Rectangle
