1424492

Active

Phoenix Contact

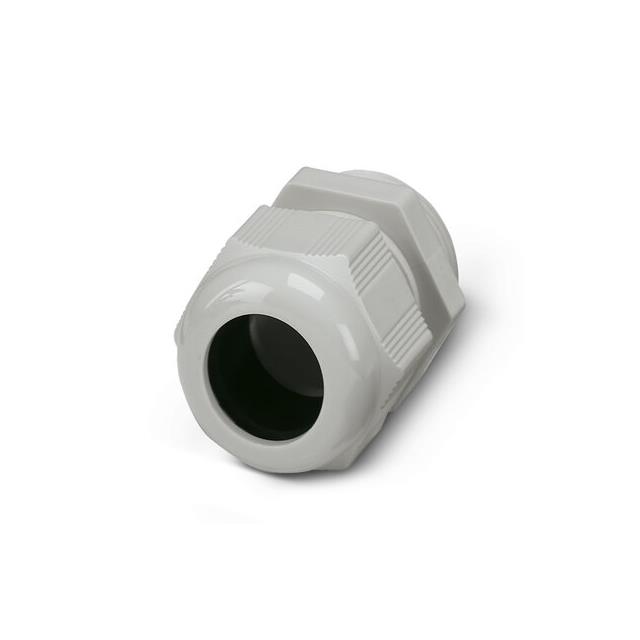

CABLE GLAND 22-32MM PG36

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 22-32MM PG36

Technical Specifications

Parameters and characteristics for this part

Specification	1424492

Color	Gray
Includes	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.866 in
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	PG36
Type	Cable Gland

Part	Ingress Protection	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Type
Phoenix Contact 1411178	IP66 IP68 IP69	Brass Nickel Plated	32 mm	1.26 in	PG36	100 °C	-40 °C	O-Ring Seal	22 mm	0.866 in	0.354 in	9 mm	Silver	Cable Gland
Phoenix Contact 1424492	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon	32 mm	1.26 in	PG36	100 °C	-40 °C	Seal	22 mm	0.866 in	0.512 in	13 mm	Gray	Cable Gland
Phoenix Contact 1424502	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon	32 mm	1.26 in	PG36	100 °C	-40 °C	Seal	22 mm	0.866 in	0.512 in	13 mm	Black	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.29

General part information

Cable Gland Polyamide (PA), Nylon PG36 Gray
