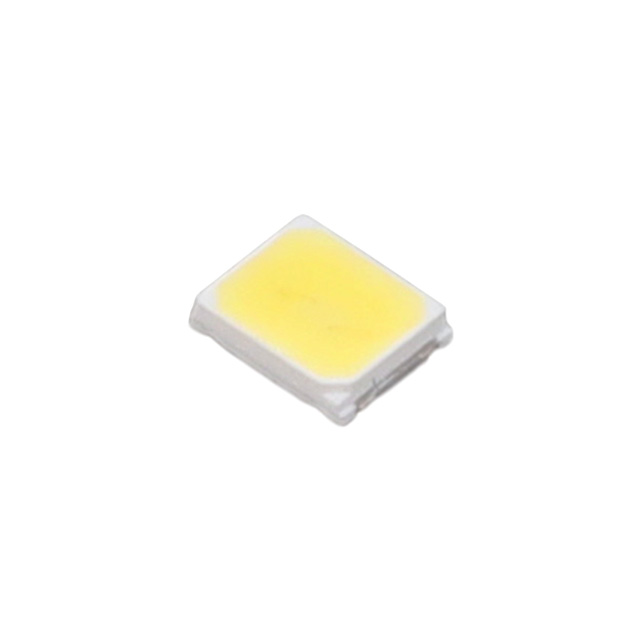

ASMF-LWG4-NRUHD

Obsolete

Broadcom Limited

LED COOL WHITE 6500K 3030

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED COOL WHITE 6500K 3030

Technical Specifications

Parameters and characteristics for this part

Specification	ASMF-LWG4-NRUHD

CCT (K)	6500 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	240 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	27 lm
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Lumens/Watt @ Current - Test	143 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [diameter]	15 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.9 V

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Supplier Device Package	Current - Test	Color	Package / Case	Package / Case	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Thermal Resistance of Package [diameter]	Current - Max [Max]	Flux @ 25°C, Current - Test	Mounting Type	CCT (K)	Flux @ 25°C, Current - Test
Broadcom Limited ASMF-LWG4-NRUGD	2.9 V	0.118 in	3 mm	3 mm	0.118 in	143 lm/W	3030	65 mA	Cool White	1212	3030 Metric	80	0.8 mm	0.031 "	120 °	15 °C/W	240 mA	27 lm	Surface Mount
Broadcom Limited ASMF-LWG4-NRUHD	2.9 V	0.118 in	3 mm	3 mm	0.118 in	143 lm/W	3030	65 mA	Cool White	1212	3030 Metric	80	0.8 mm	0.031 "	120 °	15 °C/W	240 mA	27 lm	Surface Mount	6500 K
Broadcom Limited ASMF-LWG4-NRUJD	2.9 V	0.118 in	3 mm	3 mm	0.118 in	143 lm/W	3030	65 mA	Cool White	1212	3030 Metric	80	0.8 mm	0.031 "	120 °	15 °C/W	240 mA	27 lm	Surface Mount	6800 K
Broadcom Limited ASMF-LWG4-NQTBD	2.9 V	0.118 in	3 mm	3 mm	0.118 in	138 lm/W	3030	65 mA	Warm White	1212	3030 Metric	80	0.8 mm	0.031 "	120 °	15 °C/W	240 mA	26 lm	Surface Mount		22 lm 30 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting - White, Cool 6500K 2.9V 65mA 120° 1212 (3030 Metric)
