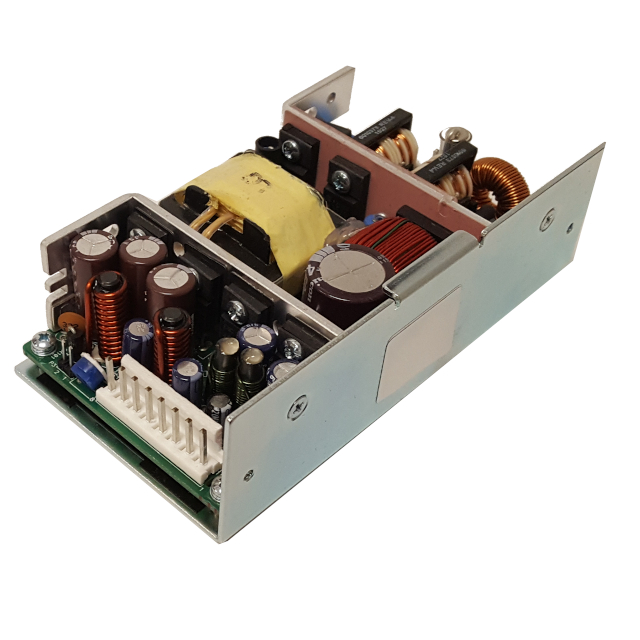

1011212CH

Active

Integrated Power Designs

REL-70-3003 CH

Search across all available documentation for this part.

Active

Integrated Power Designs

REL-70-3003 CH

Technical Specifications

Parameters and characteristics for this part

Specification	1011212CH

Applications	Industrial, Laboratory, Medical, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	6 A
Current - Output 2	2 A
Current - Output 3	2 A
Efficiency	78 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	70 W
Size / Dimension [x]	4.79 "
Size / Dimension [x]	121.6 mm
Size / Dimension [y]	2.62 "
Size / Dimension [y]	66.5 mm
Size / Dimension [z]	1.48 "
Size / Dimension [z]	37.6 mm
Standard Number	60601-1, 62368-1
Type	Chassis
Voltage - Output 1	5.1 V
Voltage - Output 2	7.5 V
Voltage - Output 4	-7.5 V

Part	Voltage - Output 1	Type	Number of Outputs	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Current - Output 3	Standard Number	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Approval Agency	Voltage - Output 4	Current - Output 2	Efficiency	Features	Mounting Type
Integrated Power Designs 1011212CH	5.1 V	Chassis	3	70 W	4.79 "	121.6 mm	1.48 "	2.62 "	66.5 mm	37.6 mm	6 A	2 A	60601-1 62368-1	7.5 V	70 °C	0 °C	Industrial ITE (Commercial) Laboratory Medical	CE cURus TUV UKCA	-7.5 V	2 A	78 %	Adjustable Output Universal Input	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Chassis AC DC Converters 3 Output 5.1V 7.5V -7.5V 85 ~ 264 VAC Input
