8020.5016.PT

Active

SCHURTER Inc.

FUSE CERM 3.15A 500VAC 400VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERM 3.15A 500VAC 400VDC

Technical Specifications

Parameters and characteristics for this part

Specification	8020.5016.PT

Breaking Capacity @ Rated Voltage	1.5 kA
Current Rating (Amps)	3.15 A
Fuse Type	Cartridge, Ceramic
Melting I˛t	39
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Slow Blow
Size / Dimension [diameter]	0.27 in
Size / Dimension [diameter]	6.85 mm
Size / Dimension [x]	1.291 "
Size / Dimension [x]	32.8 mm
Voltage Rating - AC	500 V
Voltage Rating - DC	400 V

Part	Fuse Type	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Melting I˛t	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Response Time	Mounting Type	Package / Case [x]	Package / Case [y]	Package / Case	Voltage Rating - AC	Current Rating (Amps)
SCHURTER Inc. 8020.5016.PT	Cartridge Ceramic	400 V	1.5 kA	85 °C	-40 °C	39	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	Through Hole	1/4	1-1/4	3AB 3AG	500 V	3.15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

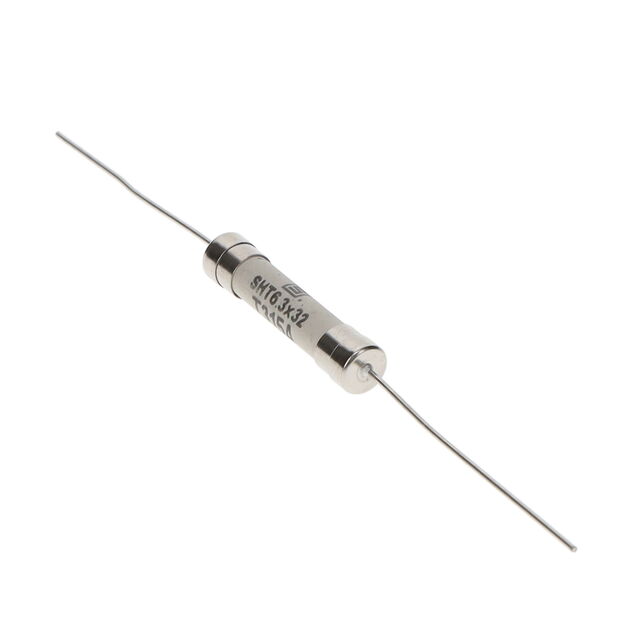

3.15 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
