SFW4R-1STE1LF
ActiveAmphenol ICC (FCI)

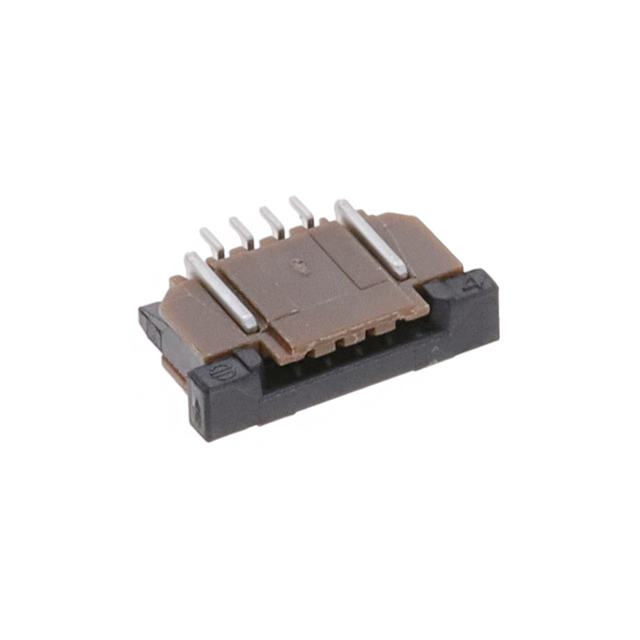

CONN FFC FPC BOTTOM 4POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW4R-1STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC BOTTOM 4POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW4R-1STE1LF |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Brown |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
SFW4R Series
| Part | Cable End Type | Housing Material | Voltage Rating | Mounting Type | Pitch [x] | Pitch [x] | Actuator Material | Housing Color | Flat Flex Type | Actuator Color | Mating Cycles | Connector/Contact Type | Height Above Board [z] | Height Above Board [z] | Contact Finish | FFC, FCB Thickness [z] | Number of Positions | Material Flammability Rating | Locking Feature | Termination | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Straight Tapered | Polyphenylene Sulfide (PPS) Glass Filled | 100 V | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | Brown | FFC FPC | Black | 20 | Contacts Bottom | 0.106 in | 2.7 mm | Tin | 0.3 mm 0.33 mm | 4 | UL94 V-0 | Slide Lock | Solder | Phosphor Bronze | 105 ░C | -55 °C | ||
Amphenol ICC (FCI) | Straight Tapered | Polyphenylene Sulfide (PPS) Glass Filled | 100 V | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | Brown | FPC | 20 | Contacts Top | 0.106 in | 2.7 mm | Gold | 4 | UL94 V-0 | Kinked Pin | Phosphor Bronze | 105 ░C | -55 °C | 0.3 mm | ||||
Amphenol ICC (FCI) | Surface Mount Right Angle | 0.039 in | 1 mm | 4 | Solder | ||||||||||||||||||||
Amphenol ICC (FCI) | Notched | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Gray | FFC FPC | Gray | Contacts Bottom | 0.106 in | 2.7 mm | Tin | 0.3 mm 0.33 mm | 4 | UL94 V-0 | Slide Lock | Solder | Phosphor Bronze | ||||||
Amphenol ICC (FCI) | Tapered | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | Brown | FPC | Black | Contacts Bottom | 0.106 in | 2.7 mm | Gold | 4 | UL94 V-0 | Slide Lock | Solder | Phosphor Bronze | 0.33 mm | ||||||
Amphenol ICC (FCI) | Straight | Polyphenylene Sulfide (PPS) Glass Filled | 100 V | Surface Mount Right Angle | 0.039 in | 1 mm | Contacts Top | 0.106 in | 2.7 mm | Tin | 4 | Slide Lock | Solder | 105 ░C | -55 °C | 0.33 mm | |||||||||
Amphenol ICC (FCI) | Surface Mount Right Angle | 0.039 in | 1 mm | Contacts Top | 0.106 in | 2.7 mm | 4 | Slide Lock | Solder | ||||||||||||||||
Amphenol ICC (FCI) | Straight Tapered | Polyphenylene Sulfide (PPS) Glass Filled | 100 V | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | Brown | FFC FPC | Black | 20 | Contacts Bottom | 0.106 in | 2.7 mm | Tin | 0.3 mm 0.33 mm | 4 | UL94 V-0 | Slide Lock | Solder | Phosphor Bronze | 105 ░C | -55 °C | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Straight Tapered | Polyphenylene Sulfide (PPS) Glass Filled | 100 V | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | Brown | CIC | 10 | Contacts Bottom | 0.106 in | 2.7 mm | Tin | 4 | UL94 V-0 | Kinked Pin | Phosphor Bronze | 105 ░C | -55 °C | 0.3 mm | ||||
Amphenol ICC (FCI) | Straight Tapered | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | Brown | FFC FPC | Black | Contacts Top | 0.106 in | 2.7 mm | Tin Alloy | 0.3 mm 0.33 mm | 4 | UL94 V-0 | Slide Lock | Solder | Phosphor Bronze |
