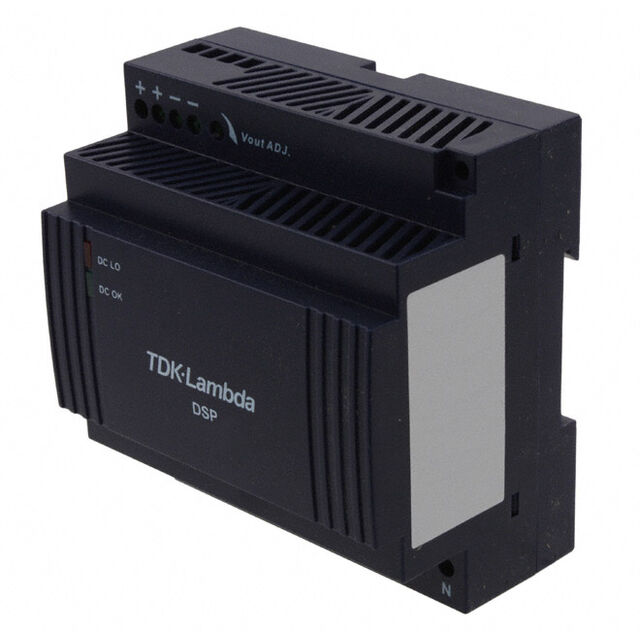

DSP100-24/C2
TDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 91.2 W, 24 VDC, 3.8 A
Deep-Dive with AI
Search across all available documentation for this part.
DSP100-24/C2
TDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 91.2 W, 24 VDC, 3.8 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSP100-24/C2 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 90 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 3.8 A |
| DC Voltage - Input (Max) [Max] | 370 V |
| DC Voltage - Input (Min) [Min] | 120 V |
| Efficiency | 89 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 55.6 mm |
| Size / Dimension [x] | 2.19 in |
| Size / Dimension [y] | 3.54 in |
| Size / Dimension [y] | 89.9 mm |
| Size / Dimension [z] | 3.58 in |
| Size / Dimension [z] | 90.9 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DSP100 Series
The DSP100-24/C2 is a 24V/91.2W 1-output DIN-rail mount Power Supply with wide range AC input, low profile, class-2 double insulation and convection cooled. 120 to 145% overvoltage protection. This power supply output is fixed and can be adjustable.
