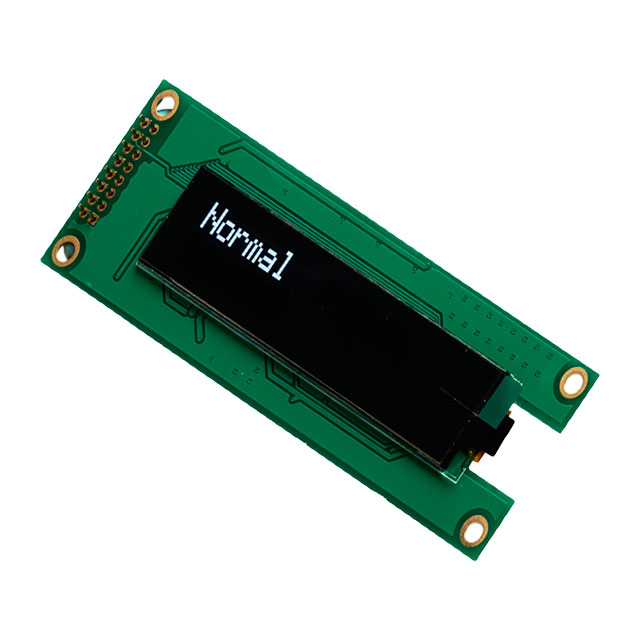

LOD-H02002DP-W
ActiveLumex Opto/Components Inc.
OLED MODULE 40DIG 20 X 2 PASSIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LOD-H02002DP-W |
|---|---|
| Background Color | Black |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 3.22 mm |
| Character Size [y] | 5.57 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Mode | Passive |
| Display Type | OLED |
| Dot Size [x] | 0.62 mm |
| Dot Size [y] | 0.67 mm |
| Interface | Parallel, 8-Bit |
| Number of Characters | 40 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 3.8 mm |
| Text Color | White |
| Viewing Area [x] | 75.52 mm |
| Viewing Area [y] | 13.52 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LOD-H02002 Series
Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit 116.00mm x 37.00mm x 3.80mm
