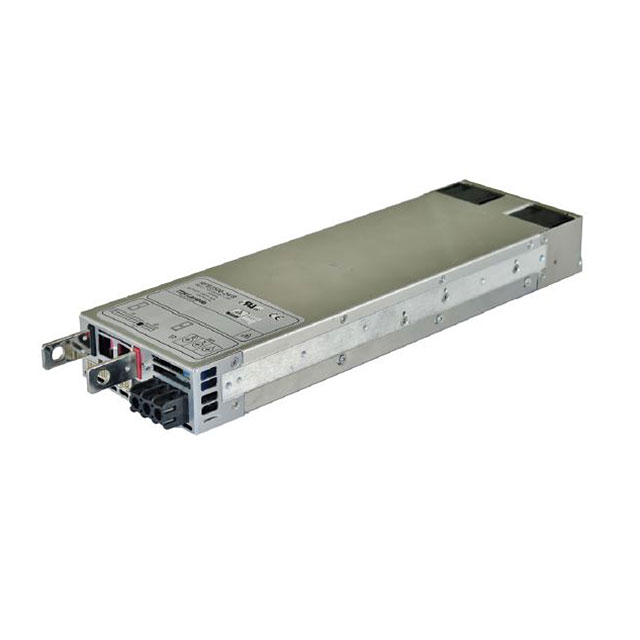

RFE2500-24/S
ActiveTDK-LAMBDA
AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 2.304 KW, 24 V, 96 A
Deep-Dive with AI
Search across all available documentation for this part.
RFE2500-24/S
ActiveTDK-LAMBDA
AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 2.304 KW, 24 V, 96 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFE2500-24/S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 96 A |
| Efficiency | 92 % |
| Features | I2C Interface, Standby Output, Load Sharing, Adjustable Output, Remote On/Off, Remote Sense, PMBus™, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2500 W |
| Size / Dimension [x] | 344 mm |
| Size / Dimension [x] | 13.54 in |
| Size / Dimension [y] | 4.21 in |
| Size / Dimension [y] | 107 mm |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 40.8 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RFE2500 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 265 VAC Input
