ES0800/03DSFB

Active

On Shore Technology Inc.

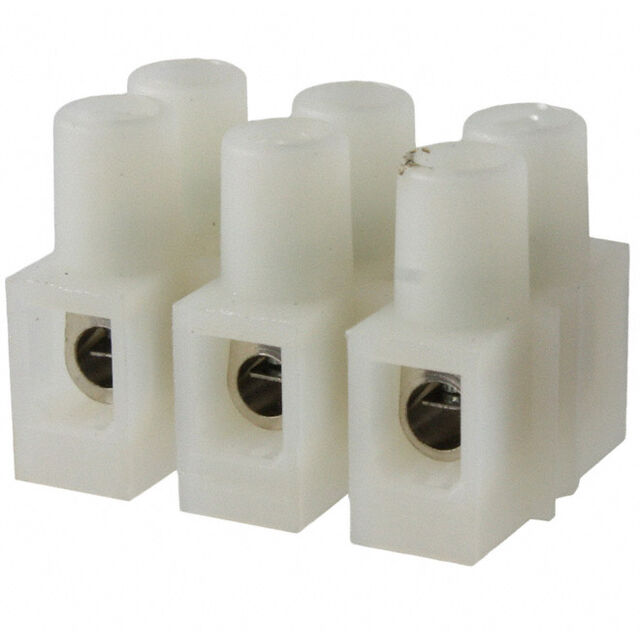

CONN TERM STRIP 3CIRC 0.315"

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN TERM STRIP 3CIRC 0.315"

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Terminal Block Type	Mounting Type	Number of Rows	Number of Wire Entries	Barrier Type	Voltage Rating	Top Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits [custom]	Number of Circuits	Number of Wire Entries [custom]
On Shore Technology Inc. ES0800/08DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2	16	Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C	8
On Shore Technology Inc. ES0800/11DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2		Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C		11	22
On Shore Technology Inc. ES0800/05DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2	10	Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C		5
On Shore Technology Inc. ES0800/06DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2	12	Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C		6
On Shore Technology Inc. ES0800/03DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2	6	Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C		3
On Shore Technology Inc. ES0800/10DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2	20	Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C		10
On Shore Technology Inc. ES0800/12DSFB	14 AWG	22 AWG	Closed	Eurostyle Terminal Strip	Chassis Panel	2		Enclosed	300 VDC	Screws	15 A	105 ░C	-33 °C		12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Circuit 0.315" (8.00mm) Eurostyle Terminal Strip Connector Screws
