109904-E

Obsolete

TE Connectivity Raychem Cable Protection

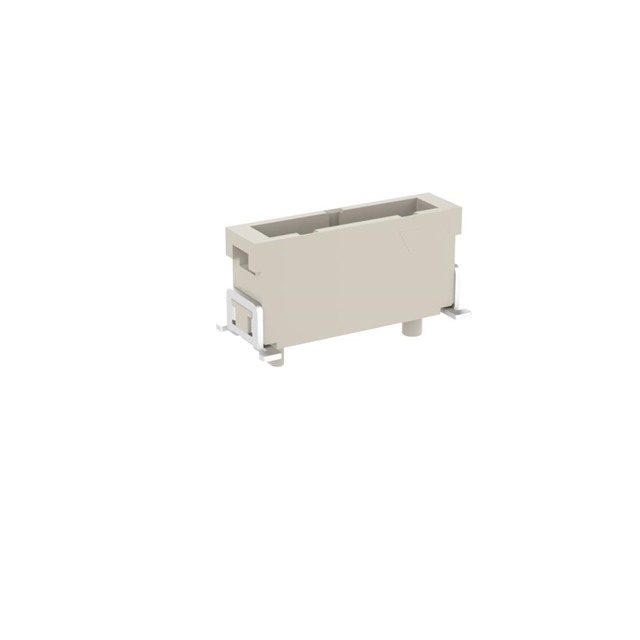

IBRIDGE 2MM 05POS M VERT SMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109904-E

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.5 µm
Contact Finish Thickness - Mating	98.4 µin
Contact Finish Thickness - Post	2.5 µm
Contact Finish Thickness - Post	98.4 µin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	95 V, 300 VDC

- Series

...

Part	Thread Length	Thread Length	Color	Thread Size	Panel Hole Size	Panel Hole Size	Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Type	Termination	Material Flammability Rating	Pitch [x]	Pitch [x]	Material - Insulation	Contact Finish	Number of Positions	Number of Positions Loaded	Number of Rows	Style	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Current Rating (Amps)	Contact Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Material	Applications	Contact Shape	Voltage Rating	Fastening Type	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size
TE Connectivity Raychem Cable Protection 5315664	10 mm	0.394 in	Black	PG16	0.236 in	6 mm	Cable Gland - Multiple Openings	-30 ░C	120 °C	IP68 - Dust Tight Waterproof
Altech Corporation 5315664	10 mm	0.394 in	Black	PG16	0.236 in	6 mm	Cable Gland - Multiple Openings	-30 ░C	120 °C	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection 254124-E								-55 °C	125 °C		Receptacle Female Sockets	Press-Fit	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Gold	160	All	5	E	Through Hole
TE Connectivity Raychem Cable Protection 109904-E								-40 °C	100 °C		Header	Solder	UL94 V-0						All	1	Board to Cable/Wire	Surface Mount	0.079 in	2 mm	Natural	2.5 µm	98.4 µin	2.5 µm	98.4 µin	Tin	Copper Alloy	5 A	Male Pin	Shrouded - 4 Wall	4 mm	0.157 in	Liquid Crystal Polymer (LCP)	General Purpose	Rectangular	95 V 300 VDC	Latch Holder
TE Connectivity Raychem Cable Protection 104703
TE Connectivity Raychem Cable Protection 5306116	10 mm	0.394 in	Black	PG16	0.886 in	22.5 mm	Cable Gland	-30 ░C	100 °C	IP68 - Dust Tight Waterproof																																Strain Relief	8.5 mm	0.335 in	14 mm	0.551 "
Altech Corporation 5306116	10 mm	0.394 in	Black	PG16	0.886 in	22.5 mm	Cable Gland	-30 ░C	100 °C	IP68 - Dust Tight Waterproof																																Strain Relief	8.5 mm	0.335 in	14 mm	0.551 "
TE Connectivity Raychem Cable Protection 5315891	12 mm	0.472 in	Gray	PG29		0.433 in	Cable Gland - Multiple Openings	-30 ░C	120 °C	IP68 - Dust Tight Waterproof																																					11 mm
Altech Corporation 5315891	12 mm	0.472 in	Gray	PG29		0.433 in	Cable Gland - Multiple Openings	-30 ░C	120 °C	IP68 - Dust Tight Waterproof																																					11 mm
TE Connectivity Raychem Cable Protection 8114252

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.59
		10	$ 1.38
	Digi-Reel®	1	$ 1.59
		10	$ 1.38
	Tape & Reel (TR)	400	$ 1.37

Description

General part information

- Series

Connector Header Surface Mount 5 position 0.079" (2.00mm)
