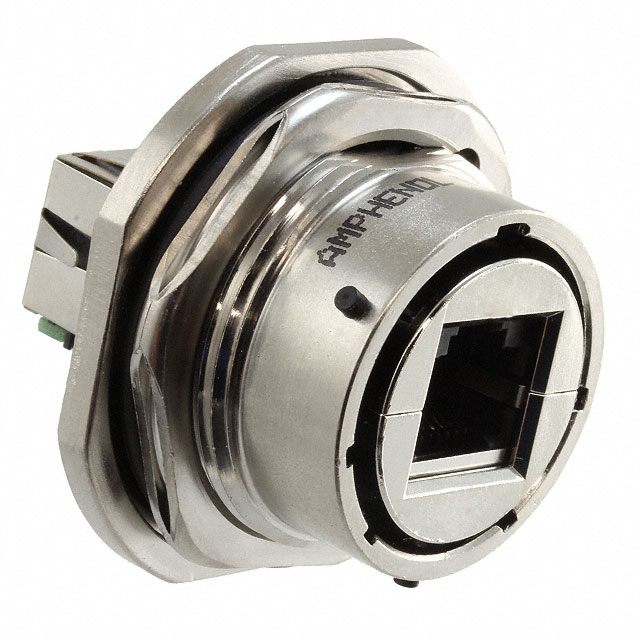

RJF67A1N
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Search across all available documentation for this part.
RJF67A1N
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF67A1N |
|---|---|
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Front Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat6 |
| Shell Material, Finish | Nickel Plated, Aluminum |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 93.71 | |
| 10 | $ 86.00 | |||
| 25 | $ 82.69 | |||
| 50 | $ 79.93 | |||
| 100 | $ 75.52 | |||
Description
General part information
RJF67 Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6
Documents
Technical documentation and resources
No documents available
