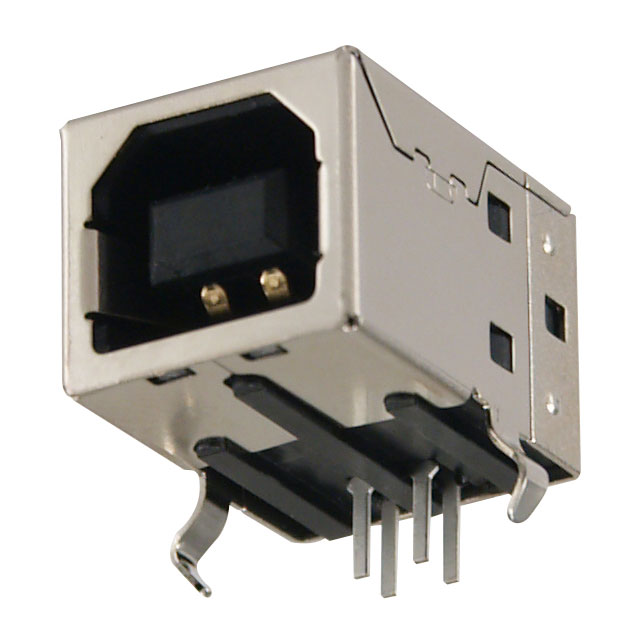

KUSBEX-BSFS1N-B
ActiveKycon, Inc.
CONN RCPT USB2.0 TYPEB 4POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
KUSBEX-BSFS1N-B
ActiveKycon, Inc.
CONN RCPT USB2.0 TYPEB 4POS R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KUSBEX-BSFS1N-B |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.02 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.81 | |||
| 60 | $ 0.76 | |||
| 120 | $ 0.72 | |||
| 300 | $ 0.68 | |||
| 540 | $ 0.65 | |||
| 1020 | $ 0.62 | |||
| 2520 | $ 0.58 | |||
Description
General part information
KUSBEX-B Series
USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
