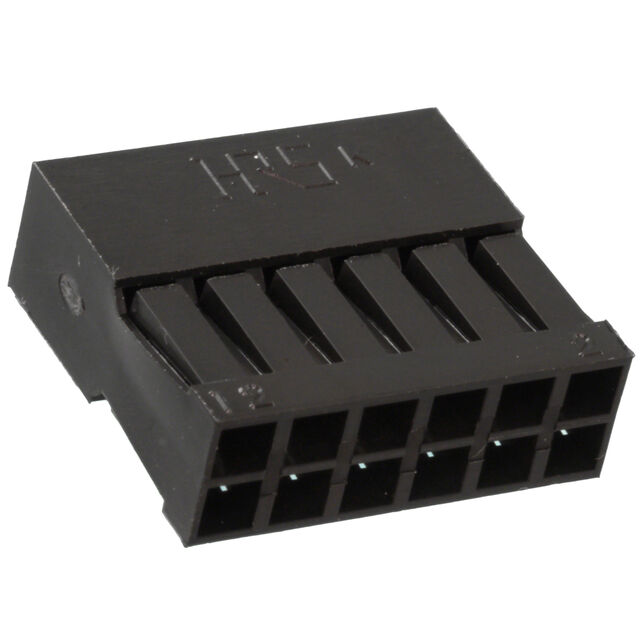

A1-12D-2.54C
ActiveHirose Electric USA, Inc.
2.54MM PITCH HIGH DENSITY CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
A1-12D-2.54C
ActiveHirose Electric USA, Inc.
2.54MM PITCH HIGH DENSITY CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A1-12D-2.54C |
|---|---|
| Color | Black |
| Connector Type | Socket |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
A1-12D-2 Series
12 Rectangular Connectors - Housings Socket Black 0.100" (2.54mm)
