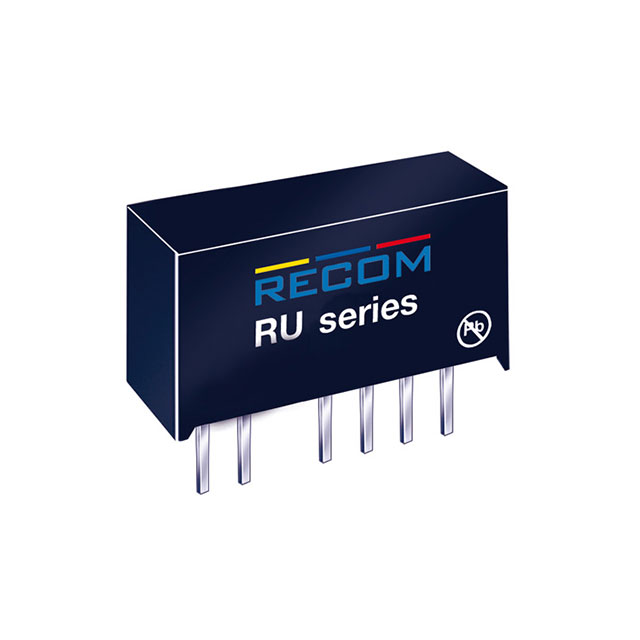

RU-3.30505

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV UNREG 3.3VIN 5VOUT

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV UNREG 3.3VIN 5VOUT

Technical Specifications

Parameters and characteristics for this part

General Purpose Relays Relay Plug-In DPDT 10A 12VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Number of Outputs	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Features	Applications	Efficiency	Voltage - Input (Min) [Min]	Mounting Type
RECOM Power RU-050505/P	85 °C	-40 °C	5 V	2	7-SIP Module 6 Leads	1000 V	5.5 V	100 mA	100 mA	Isolated Module	5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	SCP	ITE (Commercial)	72 %	4.5 V	Through Hole
RECOM Power RU-3.30505	85 °C	-40 °C	5 V	2	7-SIP Module 6 Leads	1000 V	3.6 V	100 mA	100 mA	Isolated Module	5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	SCP	ITE (Commercial)	76 %	3 V	Through Hole
RECOM Power RU-3.30505/HP	85 °C	-40 °C	5 V	2	7-SIP Module 6 Leads	2000 V	3.6 V	100 mA	100 mA	Isolated Module	5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	SCP	ITE (Commercial)	76 %	3 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
