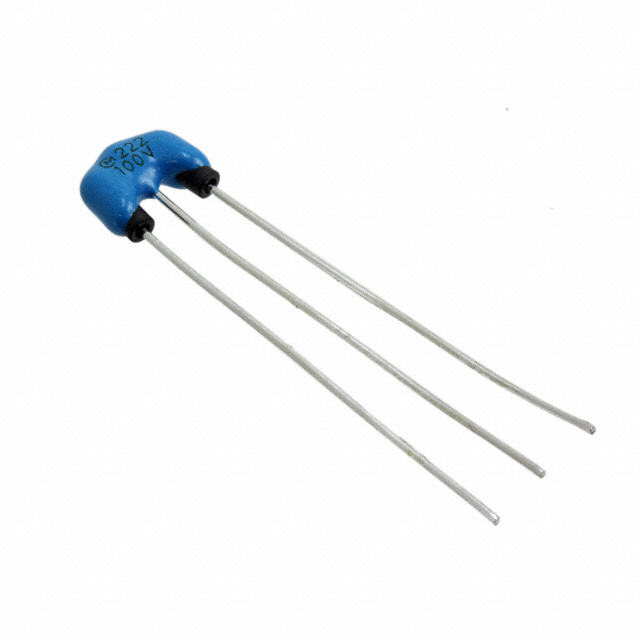

DSS1NB32A152Q91A

Active

Murata Power Solutions Inc.

FILTER LC(T) 1500PF TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DSS1NB32A152Q91A

Active

Murata Power Solutions Inc.

FILTER LC(T) 1500PF TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DSS1NB32A152Q91A

Applications	General Purpose
Current	6 A
ESD Protection	False
Filter Order	3
Height [z]	7.5 mm
Height [z]	0.295 in
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 3 Leads
Size / Dimension [x]	0.335 "
Size / Dimension [x]	8.5 mm
Size / Dimension [y]	0.138 in
Size / Dimension [y]	3.5 mm
Technology	LC (T-Type)
Type	Low Pass
Values	1500 pF
Voltage - Rated	100 V

DSS1NB32A Series

Part	Mounting Type	Technology	Filter Order	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Channels	Applications	Voltage - Rated	Type	Operating Temperature [Max]	Operating Temperature [Min]	Height [z]	Height [z]	Current	Package / Case	Values
Murata Power Solutions Inc. DSS1NB32A102Q93A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads
Murata Power Solutions Inc. DSS1NB32A222Q55B	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads
Murata Power Solutions Inc. DSS1NB32A151Q91A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads	150 pF
Murata Power Solutions Inc. DSS1NB32A222Q92A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads
Murata Power Solutions Inc. DSS1NB32A102Q91A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads	1000 pF
Murata Power Solutions Inc. DSS1NB32A152Q91A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads	1500 pF
Murata Power Solutions Inc. DSS1NB32A222Q93A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads
Murata Power Solutions Inc. DSS1NB32A331Q91A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads	330 pF
Murata Power Solutions Inc. DSS1NB32A472Q91A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads	4700 pF
Murata Power Solutions Inc. DSS1NB32A471Q91A	Through Hole	LC (T-Type)	3	0.138 in	0.335 "	3.5 mm	8.5 mm	1	General Purpose	100 V	Low Pass	85 °C	-40 °C	7.5 mm	0.295 in	6 A	Radial - 3 Leads	470 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.54
		10	$ 0.53
		25	$ 0.43
		50	$ 0.39
		100	$ 0.35
		250	$ 0.33
		500	$ 0.30
	Tape & Box (TB)	1500	$ 0.28
		3000	$ 0.26
		7500	$ 0.25
		10500	$ 0.23
		37500	$ 0.23

Description

General part information

DSS1NB32A Series

LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 1500pF 6 A Radial - 3 Leads
