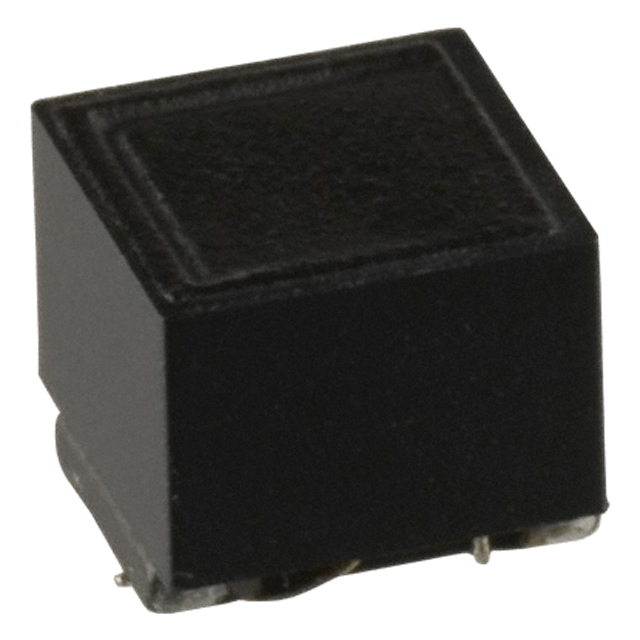

DLW5BSN351SQ2L
ObsoleteMurata Power Solutions Inc.
350Ω@100MHZ 40MΩ SMD-4P,5X5MM COMMON MODE FILTERS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DLW5BSN351SQ2L
ObsoleteMurata Power Solutions Inc.
350Ω@100MHZ 40MΩ SMD-4P,5X5MM COMMON MODE FILTERS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW5BSN351SQ2L |
|---|---|
| Current Rating (Max) [Max] | 2 A |
| DC Resistance (DCR) (Max) [Max] | 40 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) [Max] | 4.5 mm |
| Height (Max) [Max] | 0.177 in |
| Impedance @ Frequency | 350 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 1.33 | |
| 10 | $ 1.11 | |||
| 30 | $ 0.99 | |||
| 100 | $ 0.85 | |||
| 400 | $ 0.79 | |||
| 800 | $ 0.77 | |||
Description
General part information
DLW5BSN Series
2 Line Common Mode Choke Surface Mount 350 Ohms @ 100 MHz 2A DCR 40mOhm
