ES1030QI

Obsolete

Altera

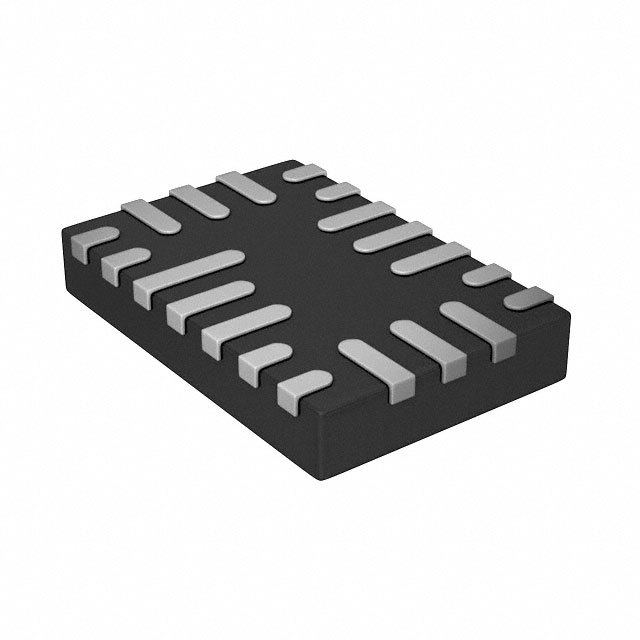

IC SEQUENCER DGTL QUAD 20STQFN

Search across all available documentation for this part.

Obsolete

Altera

IC SEQUENCER DGTL QUAD 20STQFN

Technical Specifications

Parameters and characteristics for this part

Specification	ES1030QI

Applications	Power Supply Controller, Sequencer
Current - Supply	300 µA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-WFQFN
Supplier Device Package	20-STQFN (2x3)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.71 V

Part	Utilized IC / Part	Function	Type	Supplied Contents	Applications	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Supply	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]
Altera EVB-ES1030QI	ES1030QI	Power Supply Supervisor/Tracker/Sequencer	Power Management	Board(s)
Altera ES1030QI					Power Supply Controller Sequencer	20-STQFN (2x3)	85 °C	-40 °C	Surface Mount	300 µA	20-WFQFN	5.5 V	1.71 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Supply Controller Power Supply Controller, Sequencer 20-STQFN (2x3)
