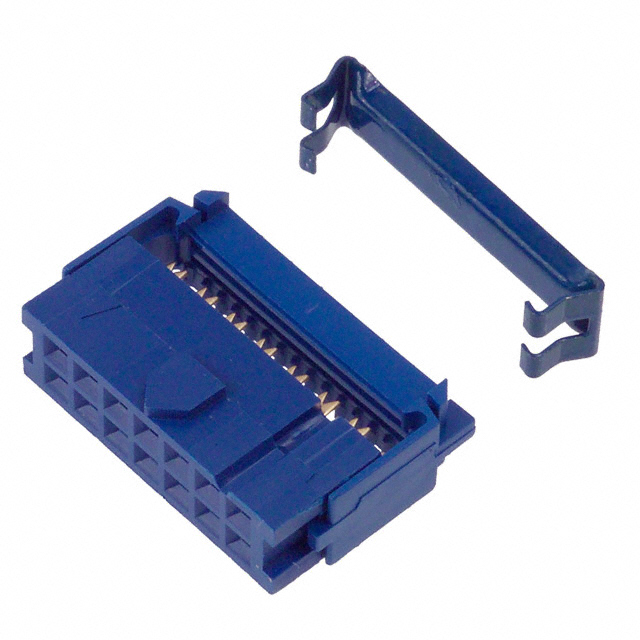

CWR-217-14-0000
ActiveCW Industries
CONN RCPT 14POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CWR-217-14-0000
ActiveCW Industries
CONN RCPT 14POS IDC GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR-217-14-0000 |
|---|---|
| Cable Termination | IDC |
| Color | Blue |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Type | Female Socket |
| Features | Feed Through, Polarizing Key, Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
CWR-217 Series
| Part | Mounting Type | Wire Type | Number of Positions | Number of Rows | Contact Finish | Features | Color | Row Spacing [x] | Row Spacing | Contact Type | Pitch [x] | Pitch [x] | Connector Type | Cable Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 34 | 2 | Tin | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | ||
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 10 | 2 | Gold | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | 10 Áin | 0.25 Ám |
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 20 | 2 | Tin | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | ||
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 40 | 2 | Tin | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | ||
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 14 | 2 | Gold | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | 10 Áin | 0.25 Ám |
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 26 | 2 | Tin | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | ||
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 14 | 2 | Tin | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | ||
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 50 | 2 | Tin | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | ||
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 40 | 2 | Tin-Lead | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | 100 µin | 2.54 µm |
CW Industries | Free Hanging (In-Line) | Ribbon Cable | 40 | 2 | Gold | Feed Through Polarizing Key Strain Relief | Blue | 0.1 in | 2.54 mm | Female Socket | 2.54 mm | 0.1 in | Receptacle | IDC | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.70 | |
| 10 | $ 4.26 | |||
| 25 | $ 4.04 | |||
| 50 | $ 3.94 | |||
| 100 | $ 3.76 | |||
| 300 | $ 3.29 | |||
| 500 | $ 3.19 | |||
| 1000 | $ 2.72 | |||
| 2500 | $ 2.54 | |||
Description
General part information
CWR-217 Series
14 Position Rectangular Receptacle Connector IDC Gold
