DIN1855A

Active

Switchcraft Inc.

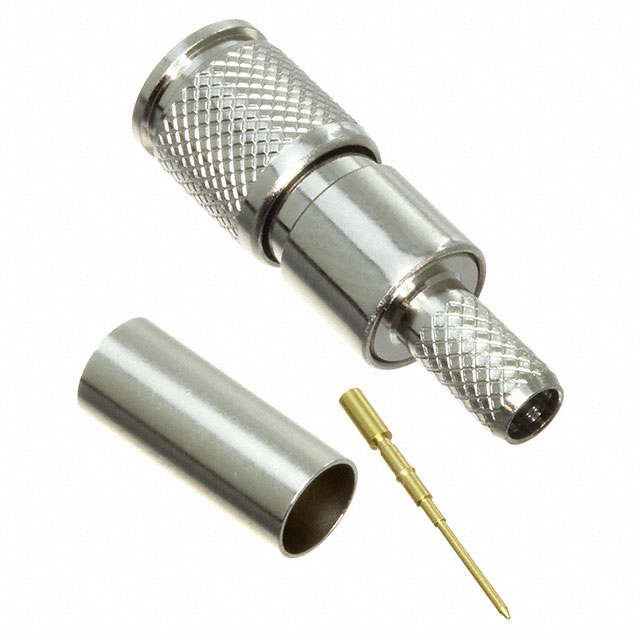

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	DIN1855A

Body Finish	Nickel
Body Material	Copper Alloy
Cable Group	Belden 1855A
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Connector Style	Body Material	Body Finish	Housing Color	Shield Termination	Contact Termination	Center Contact Plating	Mounting Type	Includes	Dielectric Material	Center Contact Material	Frequency - Max [Max]	Connector Type	Impedance	Fastening Type	Number of Ports	Cable Group
Switchcraft Inc. DIN1855A	1.0/2.3	Copper Alloy	Nickel	Silver	Crimp	Crimp	Gold	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Polytetrafluoroethylene (PTFE)	Copper Alloy	3 GHz	Male Pin Plug	75 Ohms	Push-Pull	1	Belden 1855A
Switchcraft Inc. DIN1855ENH	1.0/2.3	Copper Alloy	Nickel	Silver	Crimp	Crimp	Gold	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)	Copper Alloy	3 GHz	Male Pin Plug	75 Ohms	Push-Pull	1	Belden 1855ENH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
