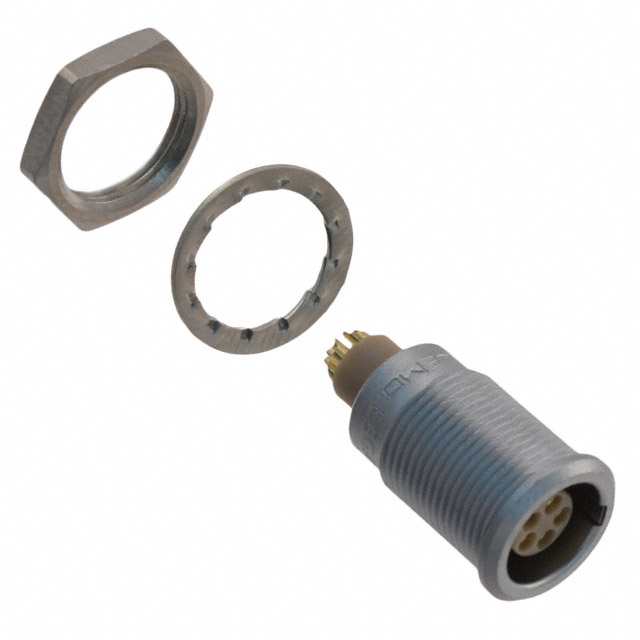

EGA.0B.305.CLL
ActiveLEMO
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGA.0B.305.CLL
ActiveLEMO
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EGA.0B.305.CLL |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 6.5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 305 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.68 | |
| 10 | $ 23.36 | |||
| 25 | $ 22.36 | |||
| 50 | $ 21.63 | |||
| 100 | $ 20.91 | |||
| 250 | $ 19.76 | |||
| 500 | $ 19.18 | |||
Description
General part information
EGA.0B Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
