SA23-11SURKWA

Active

Kingbright

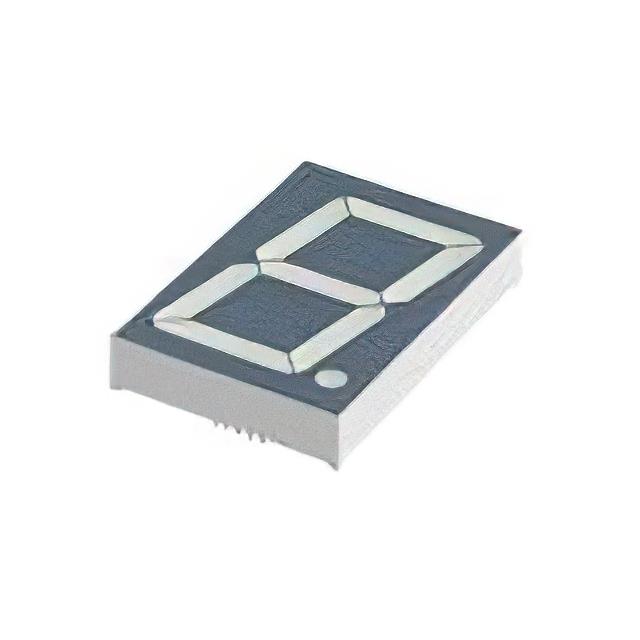

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 56.9MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA23-11SURKWA

Active

Kingbright

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 56.9MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA23-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size [custom]	56.9 mm
Digit/Alpha Size [custom]	2.24 in
Display Type	7-Segment
Millicandela Rating	440 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case	2.366 in
Package / Case	60.1 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension	48 mm, 70 mm, 12.25 mm
Size / Dimension [x]	2.756 in
Size / Dimension [y]	1.89 in
Size / Dimension [z]	0.482 "
Voltage - Forward (Vf) (Typ)	3.7 V, 7.4 V
Wavelength - Peak	645 nm

SA23-11 Series

Part	Number of Characters [custom]	Wavelength - Peak	Power Dissipation (Max) [Max]	Digit/Alpha Size [custom]	Digit/Alpha Size [custom]	Package / Case	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Common Pin	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Millicandela Rating	Display Type	Package / Case	Size / Dimension	Power Dissipation (Max)
Kingbright SA23-11SRWA	1	660 nm	300 mW	56.9 mm	2.24 in	60.1 mm	2.37 "	10-DIP	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	Common Anode	7.4 V	20 mA	Red	190 mcd	7-Segment
Kingbright SA23-11YWA	1	590 nm	300 mW	56.9 mm	2.24 in	2.37 in		20-DIP	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	Common Anode	8.4 V	20 mA	Yellow	40 mcd	7-Segment	60.1 mm
Kingbright SA23-11EWA	1	627 nm	300 mW	56.9 mm	2.24 in	2.37 in		20-DIP	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	Common Anode		20 mA	Red		7-Segment	60.1 mm
Kingbright SA23-11SURKWA	1	645 nm	75 mw	56.9 mm	2.24 in	60.1 mm	2.366 in	10-DIP	0.482 "		2.756 in			1.89 in	Common Anode	3.7 V 7.4 V	10 mA	Red	440 mcd	7-Segment		12.25 mm 48 mm 70 mm
Kingbright SA23-11GWA	1	565 nm		56.9 mm	2.24 in	60.1 mm	2.37 "	10-DIP	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	Common Anode	8.8 V	20 mA	Green	65 mcd	7-Segment			250 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.99
		10	$ 9.80
		100	$ 8.23
		1000	$ 7.14

Description

General part information

SA23-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.7V, 7.4V 10mA 2.756" H x 1.890" W x 0.482" D (70.00mm x 48.00mm x 12.25mm) 10-DIP (2.366", 60.10mm)
