CT8132BV-HL4

Active

Allegro MicroSystems

INTEGRATED DIGITAL OMNIPOLAR, TM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XtremeSense™ TMR technology

CT8132BV-HL4

Active

Allegro MicroSystems

INTEGRATED DIGITAL OMNIPOLAR, TM

Deep-Dive with AI

DocumentsDatasheet XtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT8132BV-HL4

Current - Output (Max) [Max]	20 mA
Current - Supply (Max) [Max]	5 µA
Function	Omnipolar Switch, Latch
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Push-Pull

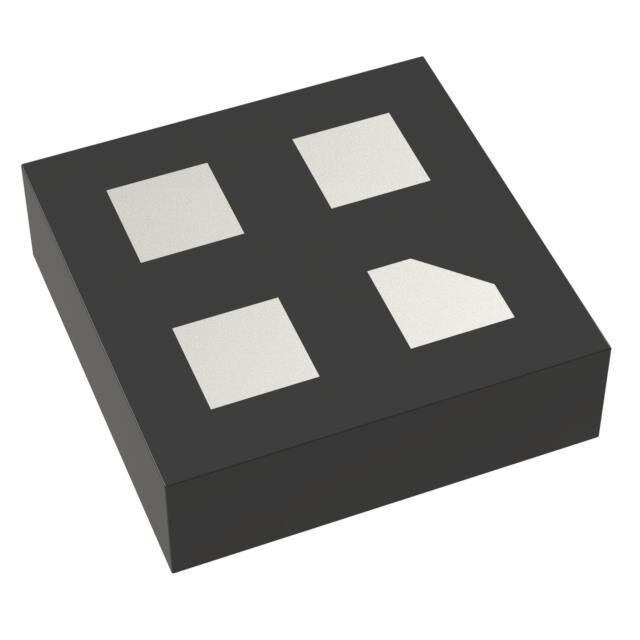

Package / Case	4-XFLGA
Polarization	South Pole, North Pole
Sensing Range	3 mT, 2 mT
Supplier Device Package	4-LGA
Supplier Device Package [x]	1.45
Supplier Device Package [y]	1.45
Technology	Magnetoresistive
Test Condition [Max]	125 °C
Test Condition [Min]	-40 °C
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.7 V

CT8132 Series

Part	Technology	Current - Supply (Max) [Max]	Package / Case	Mounting Type	Sensing Range	Output Type	Current - Output (Max) [Max]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Test Condition [Min]	Test Condition [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Polarization
Allegro MicroSystems CT8132BV-IL4	Magnetoresistive	5 µA	4-XFLGA	Surface Mount	2 mT 3 mT	Push-Pull	20 mA	4-LGA	1.45	1.45	Latch Omnipolar Switch	85 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132BV-HL4	Magnetoresistive	5 µA	4-XFLGA	Surface Mount	2 mT 3 mT	Push-Pull	20 mA	4-LGA	1.45	1.45	Latch Omnipolar Switch	125 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132BV-IS3	Magnetoresistive	5 µA	SC-59 SOT-23-3 TO-236-3	Surface Mount	2 mT 3 mT	Push-Pull	20 mA	SOT-23-3			Latch Omnipolar Switch	125 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132BL-IS3	Magnetoresistive	900 nA	SC-59 SOT-23-3 TO-236-3	Surface Mount	2 mT 3 mT	Push-Pull		SOT-23-3			Latch Omnipolar Switch	125 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132SL-HS3	Magnetoresistive	5 µA	SC-59 SOT-23-3 TO-236-3	Surface Mount	0.5 mT 0.9 mT	Push-Pull	20 mA	SOT-23-3			Latch Omnipolar Switch	125 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132BH-IS3	Magnetoresistive	900 nA	SC-59 SOT-23-3 TO-236-3	Surface Mount	2 mT 3 mT	Push-Pull	20 mA	SOT-23-3			Latch Omnipolar Switch	85 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132DM-HS3	Magnetoresistive	5 µA	SC-59 SOT-23-3 TO-236-3	Surface Mount	1 mT 1.5 mT	Push-Pull	20 mA	SOT-23-3			Latch Omnipolar Switch	85 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132EK-HS3	Magnetoresistive	5 µA	SC-59 SOT-23-3 TO-236-3	Surface Mount		Push-Pull	20 mA	SOT-23-3			Latch Omnipolar Switch	85 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132EK-IS3	Magnetoresistive	5 µA	SC-59 SOT-23-3 TO-236-3	Surface Mount		Push-Pull	20 mA	SOT-23-3			Latch Omnipolar Switch	125 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole
Allegro MicroSystems CT8132SK-IS3	Magnetoresistive	900 nA	SC-59 SOT-23-3 TO-236-3	Surface Mount	0.5 mT 0.9 mT	Push-Pull		SOT-23-3			Latch Omnipolar Switch	125 °C	-40 °C	-40 °C	125 °C	5.5 V	1.7 V	North Pole South Pole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.17
		5	$ 1.83
		10	$ 1.70
		25	$ 1.54
		50	$ 1.43
		100	$ 1.33
		500	$ 1.12
		1000	$ 1.04
	Digi-Reel®	1	$ 2.17
		5	$ 1.83
		10	$ 1.70
		25	$ 1.54
		50	$ 1.43
		100	$ 1.33
		500	$ 1.12
		1000	$ 1.04
	Tape & Reel (TR)	9000	$ 0.83

Description

General part information

CT8132 Series

Digital Switch Latch, Omnipolar Switch Push-Pull Magnetoresistive 4-LGA (1.45x1.45)
