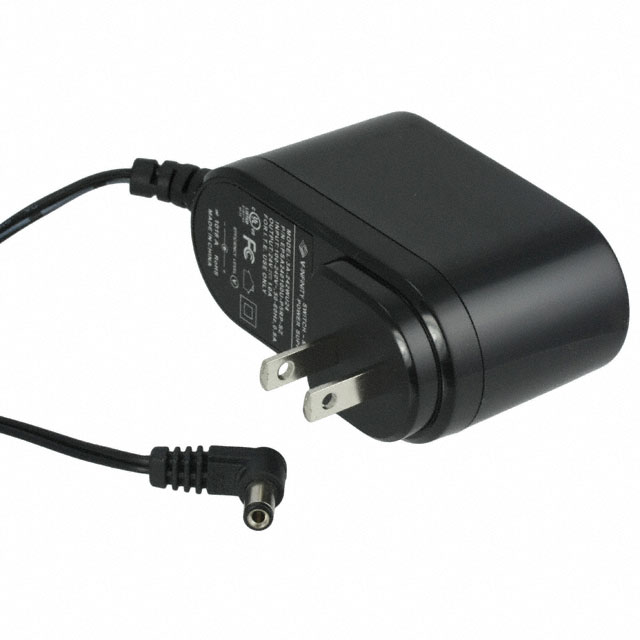

EPSA240100U-P5N-SZ

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 24W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 24W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Applications	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Input Type	Input Connector	Cord Length	Cord Length	Efficiency	Power (Watts)	Polarization	No Load Power Consumption	Region Utilized	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Form	Output Connector [diameter]	Output Connector [x]	Output Connector
CUI Inc. EPSA240100U-P5P-SZ	1 A	ITE (Commercial)	24 V	90 VAC	264 VAC	cULus	Fixed Blade	NEMA 1-15P	60.2 in	1.53 m	Level V	24 W	Positive Center	300 mW	North America	40 °C	1.38 "	2.11 "	3.15 in	35 mm	53.6 mm	80 mm	Wall Mount (Class II)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug
CUI Inc. EPSA240100U-P6RP-SZ	1 A	ITE (Commercial)	24 V	90 VAC	264 VAC	cULus	Fixed Blade	NEMA 1-15P	60.2 in	1.53 m	Level V	24 W	Positive Center	300 mW	North America	40 °C	1.38 "	2.11 "	3.15 in	35 mm	53.6 mm	80 mm	Wall Mount (Class II)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A
CUI Inc. EPSA240100U-P5N-SZ	1 A	ITE (Commercial)	24 V	90 VAC	264 VAC	cULus	Fixed Blade	NEMA 1-15P	60.2 in	1.53 m	Level V	24 W	Negative Center	300 mW	North America	40 °C	1.38 "	2.11 "	3.15 in	35 mm	53.6 mm	80 mm	Wall Mount (Class II)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 24 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
