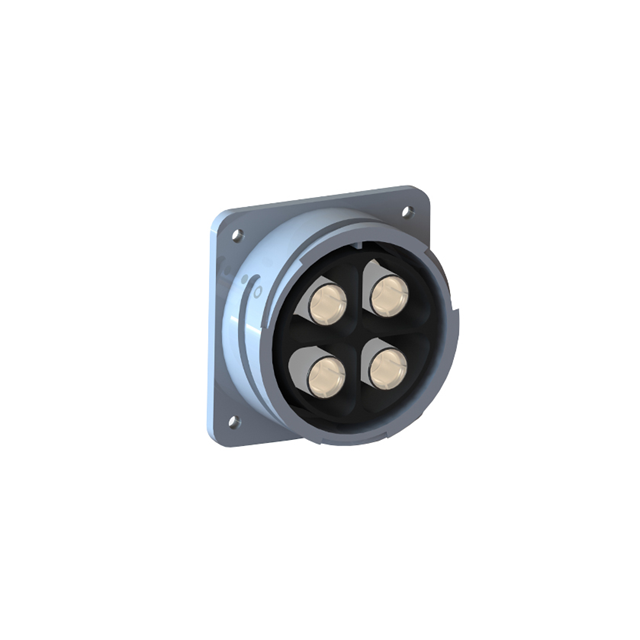

PXP9012/04/S

Active

BULGIN LIMITED

RCPT FLANGE MNT 4POS W/SKT 1/0

Search across all available documentation for this part.

Active

BULGIN LIMITED

RCPT FLANGE MNT 4POS W/SKT 1/0

Technical Specifications

Parameters and characteristics for this part

Specification	PXP9012/04/S

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	150 A
Fastening Type	Bayonet Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyoxymethylene (POM), Acetal
Shielding	Unshielded
Termination	Crimp

Part	Shell Material	Orientation	Fastening Type	Material Flammability Rating	Ingress Protection	Mounting Feature	Contact Finish - Mating	Termination	Current Rating (Amps)	Number of Positions	Primary Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Connector Type
BULGIN LIMITED PXP9012/04/S	Acetal Polyoxymethylene (POM)	Keyed	Bayonet Lock	UL94 V-0	IP68 - Dust Tight Waterproof	Flange	Silver	Crimp	150 A	4	Plastic	Copper Alloy	-55 °C	125 °C	Unshielded	Black	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Receptacle, Female Sockets Crimp
