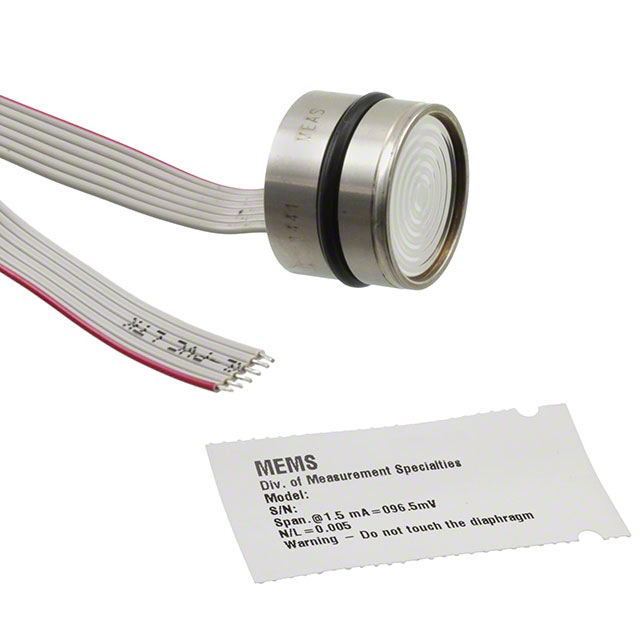

154N-015G-R

Active

TE Connectivity Measurement Specialties

SENSOR 15PSIG 0.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

154N-015G-R

Active

TE Connectivity Measurement Specialties

SENSOR 15PSIG 0.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	154N-015G-R

Accuracy	0.1 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	310.26 kPa
Maximum Pressure [Max]	45 PSI
Operating Pressure [custom]	15 PSI
Operating Pressure [custom]	103.42 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	100 mV
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	Module
Port Style	No Port
Pressure Type	Vented Gauge
Termination Style	Connector

154 Series

Part	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output Type	Port Style	Applications	Pressure Type	Accuracy	Package / Case	Operating Pressure	Operating Pressure	Termination Style	Operating Pressure [custom]	Operating Pressure [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Maximum Pressure	Maximum Pressure	Operating Pressure [x]	Operating Pressure [x]
TE Connectivity Measurement Specialties 154N-300G-RT	Temperature Compensated	900 PSI	6205.28 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	0.1 %	Module	300 PSI	2068.43 kPa	Connector
TE Connectivity Measurement Specialties 154N-015A-R	Temperature Compensated	45 PSI	310.26 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount		0.1 %	Module			Connector	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties 154N-050A-R	Temperature Compensated	150 PSI	1034.21 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount		0.1 %	Module	50 PSI	344.74 kPa	Connector
TE Connectivity Measurement Specialties 154N-001G-RT	Temperature Compensated	10 PSI	68.95 kPa	70 °C	-20 C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	0.3 %	Module	1 PSI	6.89 kPa	Connector
TE Connectivity Measurement Specialties 154CV-300G-R	Temperature Compensated	900 PSI	6205.28 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	1 %	Module	300 PSI	2068.43 kPa	Wire Leads			14 V	10 VDC
TE Connectivity Measurement Specialties 154N-500G-RT	Temperature Compensated			125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	0.1 %	Module	500 PSI	3447.38 kPa	Connector					1500 PSI	10342.14 kPa
TE Connectivity Measurement Specialties 154BC-T-012BA-C	Temperature Compensated	348.09 PSI	2400 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount		0.3 %	Module			Connector							1200 kPa	174.05 PSI
TE Connectivity Measurement Specialties 154N-015G-R	Temperature Compensated	45 PSI	310.26 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	0.1 %	Module			Connector	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties 154N-300G-R	Temperature Compensated	900 PSI	6205.28 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	0.1 %	Module	300 PSI	2068.43 kPa	Connector
TE Connectivity Measurement Specialties 154N-030G-R	Temperature Compensated	90 PSI	620.53 kPa	125 °C	-40 °C	100 mV	Wheatstone Bridge	No Port	Board Mount	Vented Gauge	0.1 %	Module	30 PSI	206.84 kPa	Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 156.06
		5	$ 145.61
		16	$ 139.25
		32	$ 135.87
		64	$ 132.77

Description

General part information

154 Series

Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV Module
