1/2C24-P30

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 500V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

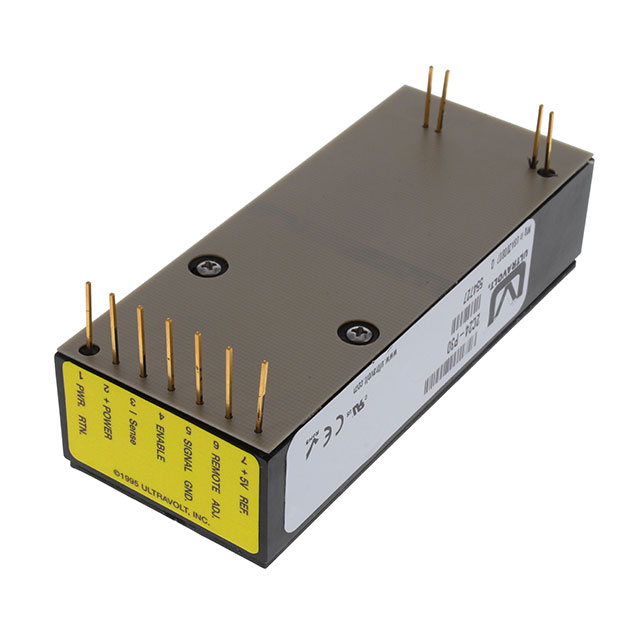

1/2C24-P30

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 500V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1/2C24-P30

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active High, Enable
Current - Output (Max) [Max]	60 mA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Package / Case	11-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	3.7 in
Size / Dimension [x]	94 mm
Size / Dimension [y]	38.1 mm
Size / Dimension [y]	1.5 in
Size / Dimension [z]	0.83 in
Size / Dimension [z]	21.2 mm
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	30 V
Voltage - Input (Min) [Min]	23 V
Voltage - Output 1	500 V

High-Power C Series

Non-Isolated DC/DC Converters HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -60kV DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, I10 Interface 0 to +10 Monitors/Controls, Arc quenching, Right-angle Male DA-15 type connector,

...

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Voltage - Input (Min) [Min]	Standard Number	Current - Output (Max) [Max]	Features	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Number of Outputs	Mounting Type	Power (Watts)	Approval Agency	Control Features	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]
ULTRAVOLT / Advanced Energy 40C24-N250-I10-H-Z11
ULTRAVOLT / Advanced Energy 60C24-P60-DA	0 V	60000 V	High Voltage - Non-Isolated Module	23 V	60950-1	1 mA	Adjustable Output Remote On/Off	Module	30 V	65 °C	-40 °C	114.3 mm	355.6 mm	2.98 in	4.5 in	14 in	75.6 mm	ITE (Commercial)	1	Through Hole	60 W	CE cUR cURus UR	Active High Enable
ULTRAVOLT / Advanced Energy 15C24-P125-I5-AQ-H-Z11
ULTRAVOLT / Advanced Energy 60C24-P60-I10-H-Z11
ULTRAVOLT / Advanced Energy 40C24-N60-DA-H	0 V	40000 V	High Voltage - Non-Isolated Module	23 V	60950-1	1.5 mA	Adjustable Output Heat Sink Remote On/Off	Module	30 V	65 °C	-40 °C	114.3 mm	355.6 mm	3.38 "	4.5 in	14 in	85.8 mm	ITE (Commercial)	1	Through Hole	60 W	CE cUR cURus UR	Active Low Enable
ULTRAVOLT / Advanced Energy 30C24-N125-H-Z11
ULTRAVOLT / Advanced Energy 40C24-P60-I10-AQ-WS-DA-H	0 V	40000 V	High Voltage - Non-Isolated Module	23 V	60950-1	1.5 mA	Adjustable Output Heat Sink Remote On/Off	Module	30 V	65 °C	-40 °C	114.3 mm	355.6 mm	3.38 "	4.5 in	14 in	85.8 mm	ITE (Commercial)	1	Through Hole	60 W	CE cUR cURus UR	Active High Enable
ULTRAVOLT / Advanced Energy 40C24-P125-I5-AQ-H-Z11
ULTRAVOLT / Advanced Energy 1/2C24-P30			High Voltage - Non-Isolated Module	23 V		60 mA		11-DIP Module	30 V	65 °C	-40 °C		94 mm	0.83 in	1.5 in	3.7 in		ITE (Commercial)	1	Through Hole	15 W	CE cURus	Active High Enable	500 V	38.1 mm	21.2 mm
ULTRAVOLT / Advanced Energy 60C24-N250-I5-AQ-DAR-H	0 V	60000 V	High Voltage - Non-Isolated Module	23 V	60950-1	4.17 mA	Adjustable Output Heat Sink Remote On/Off	Module	28 V	65 °C	-40 °C	114.3 mm	355.6 mm	3.38 "	4.5 in	14 in	85.8 mm	ITE (Commercial)	1	Through Hole	250 W	CE cUR cURus UR	Active Low Enable
