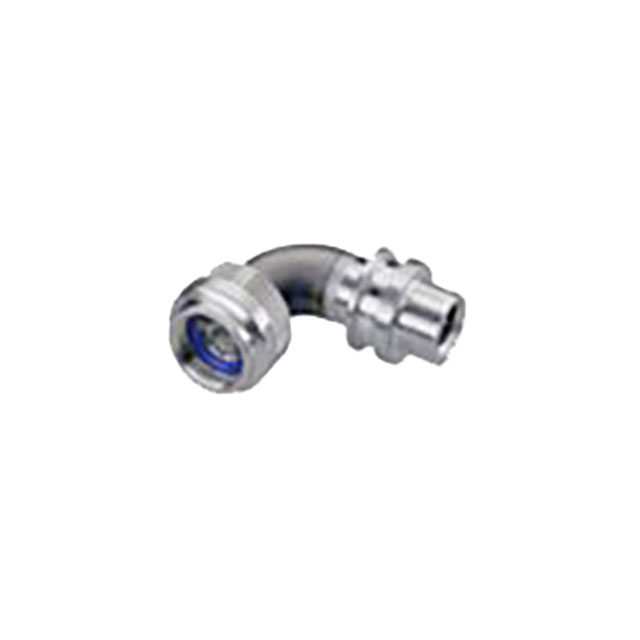

TXR54AB9W-1610BI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHLL ADPT SZ17 OLIV M25

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHLL ADPT SZ17 OLIV M25

Technical Specifications

Parameters and characteristics for this part

Specification	TXR54AB9W-1610BI

Cable Exit	90 °
Cable Opening [custom]	15.88 mm
Cable Opening [custom]	0.625 in
Color	Olive Drab
Diameter - Outside [diameter]	32.5 mm
Diameter - Outside [diameter]	1.28 in
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 Braid, 1 Tinel Ring, 1 Backshell
Ingress Protection	Environment Resistant
Material	Aluminum
Plating	Cadmium
Shell Size - Insert	17
Shielding	Shielded
Thread Size	M25x1
Type	Backshell, Heat Shrink Adapter

Part	Shielding	Cable Exit	Includes	Thread Size	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Color	Ingress Protection	Type	Features	Plating	For Use With/Related Products
TE Connectivity Aerospace, Defense and Marine TXR54AB9W-1005BI	Shielded	90 °	1 Backshell 1 Braid 1 Tinel Ring	M15x1	Aluminum	0.827 in	21 mm	11	7.92 mm	0.312 in	Olive Drab	Environment Resistant	Backshell Heat Shrink Adapter	Tinel Lock	Cadmium	MIL-DTL-38999 Series III IV
TE Connectivity Aerospace, Defense and Marine TXR54AB9W-1610BI	Shielded	90 °	1 Backshell 1 Braid 1 Tinel Ring	M25x1	Aluminum	1.28 in	32.5 mm	17	15.88 mm	0.625 in	Olive Drab	Environment Resistant	Backshell Heat Shrink Adapter	Tinel Lock	Cadmium	MIL-DTL-38999 Series III IV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 327.20

General part information

Olive Drab Connector Backshell, Heat Shrink Adapter M25x1 17
