7405-1521-005

Active

Radiall USA, Inc.

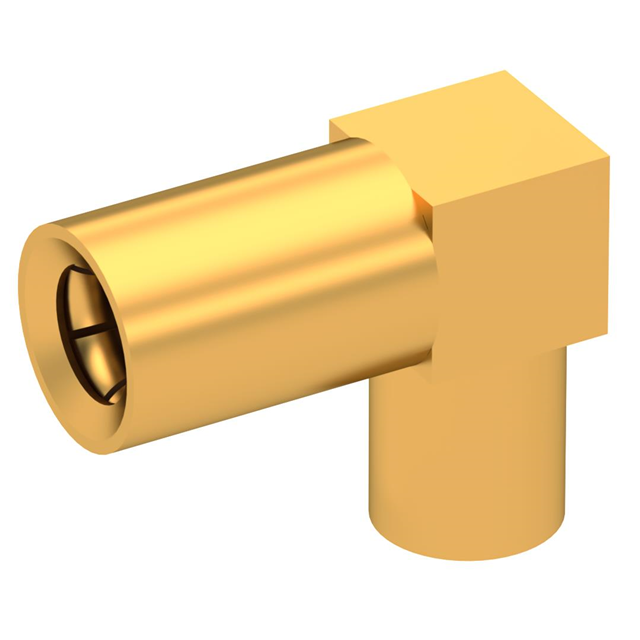

SSMB F RA NA CR 2/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB F RA NA CR 2/50S

Technical Specifications

Parameters and characteristics for this part

Specification	7405-1521-005

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Number of Ports	Body Material	Center Contact Material	Body Finish	Housing Color	Center Contact Plating	Mating Cycles	Dielectric Material	Connector Type	Voltage Rating	Mounting Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Impedance	Connector Style	Cable Group	Contact Termination	Fastening Type	Cable Group
Radiall USA, Inc. 7405-1521-003	1	Brass	Beryllium Copper	Gold	Gold	Gold	500	Polytetrafluoroethylene (PTFE)	Female Socket Plug	250 VDC	Free Hanging (In-Line) Right Angle	Crimp	-65 ░C	165 °C	12.4 GHz	50 Ohms	SSMB	316 RG-174	Crimp	Snap-On
Radiall USA, Inc. 7405-1521-005	1	Beryllium Copper	Beryllium Copper	Gold	Gold	Gold	500	Polytetrafluoroethylene (PTFE)	Female Socket Plug	250 VDC	Free Hanging (In-Line) Right Angle	Crimp	-65 ░C	165 °C	12.4 GHz	50 Ohms	SSMB	RD-316	Crimp	Snap-On
Radiall USA, Inc. 7405-1521-002	1	Beryllium Copper	Beryllium Copper	Gold	Gold	Gold	500	Polytetrafluoroethylene (PTFE)	Female Socket Plug	250 VDC	Free Hanging (In-Line) Right Angle	Crimp	-65 ░C	165 °C	12.4 GHz	50 Ohms	SSMB	RG-178	Crimp	Snap-On	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
