UCC21551CQEVM-079

Active

Texas Instruments

EVAL BOARD FOR UCC21551

Search across all available documentation for this part.

Active

Texas Instruments

EVAL BOARD FOR UCC21551

Technical Specifications

Parameters and characteristics for this part

Part	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Pulse Width Distortion (Max) [Max]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Approval Agency	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Peak Output	Package / Case	Package / Case	Package / Case	Mounting Type	Number of Channels [custom]	Current - Output High, Low	Common Mode Transient Immunity (Min) [Min]	Technology	Type	Contents	Supplied Contents	Function	Utilized IC / Part	Embedded	Primary Attributes
Texas Instruments UCC21551CDWKR	45 ns	45 ns	6 ns	13.5 V	25 V	IEC/EN/DIN UL VDE	8 ns	8 ns	4 A 6 A	0.295 in	14-SOIC	7.5 mm	Surface Mount	2	4 A 6 A	125 V/ns	Capacitive Coupling
Texas Instruments UCC21551CQEVM-079																		Power Management	Board(s)	Board(s)	Gate Driver	UCC21551		2-Channel (Dual)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.80

General part information

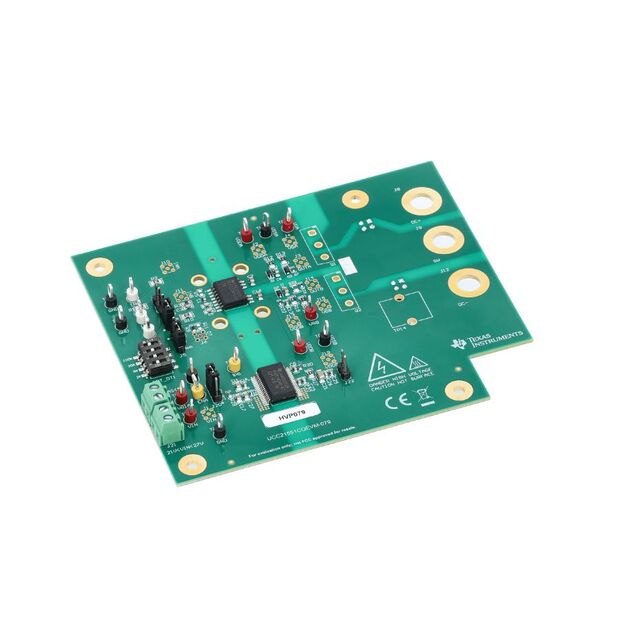

UCC21551 Gate Driver Power Management Evaluation Board
