1423A 0601000

Active

Belden Inc.

MULTI-PAIR 12COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1423A 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.319 "
Jacket (Insulation) Diameter [diameter]	8.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket Color	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Shield Coverage	Usage	Ratings	Shield Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Number of Conductors	Cable Type	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Length	Length
Belden Inc. 1423A 060500	Chrome	Copper Tinned	0.319 "	8.1 mm	500 '	152.4 m	100 %	Computer	UL Style 2919	Aluminum	Drain Wire	32 AWG	7	-20 C	80 C	0.889 mm	0.035 in	Foil	12	Multi-Pair	Foam Polyethylene (FPE)	24 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 1423A 0601000	Chrome	Copper Tinned	0.319 "	8.1 mm			100 %	Computer	UL Style 2919	Aluminum	Drain Wire	32 AWG	7	-20 C	80 C	0.889 mm	0.035 in	Foil	12	Multi-Pair	Foam Polyethylene (FPE)	24 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.11

General part information

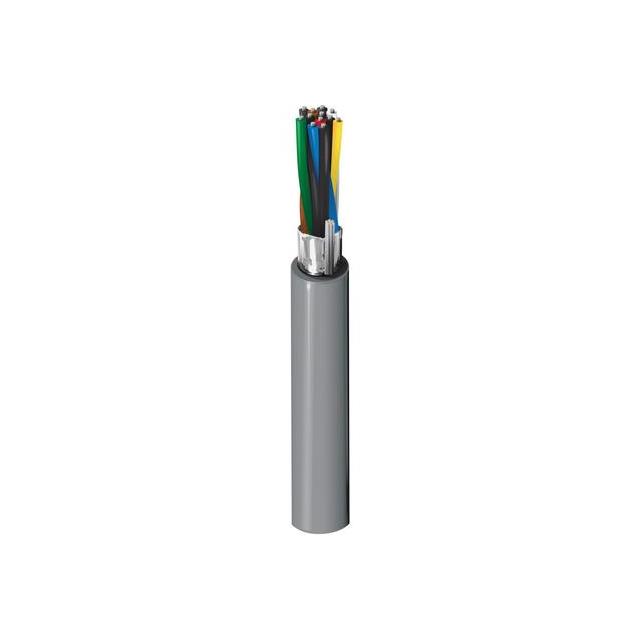

12 (6 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 1000.0' (304.8m)
