09320643101

Active

HARTING Technology Group

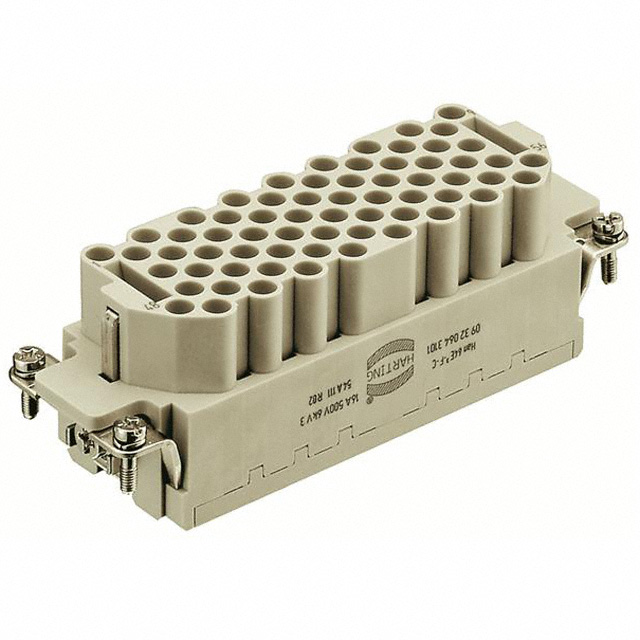

HEAVY DUTY CONNECTOR, HAN EEE SERIES, INSERT, 64+PE CONTACTS, 24B, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EEE SERIES, INSERT, 64+PE CONTACTS, 24B, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09320643101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	64+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Crimp
Voltage Rating	500 V

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Type	Number of Positions	Termination Style	Material Flammability Rating	Size	Current Rating (Amps)	Color	Voltage Rating	Gender
HARTING Technology Group 09320643101	Polycarbonate (PC)	125 °C	-40 °C	Han®	Insert without Contacts	64+Ground	Crimp	UL94 V-0	24 B	16 A	Gray	500 V	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 64+Ground Position Crimp
